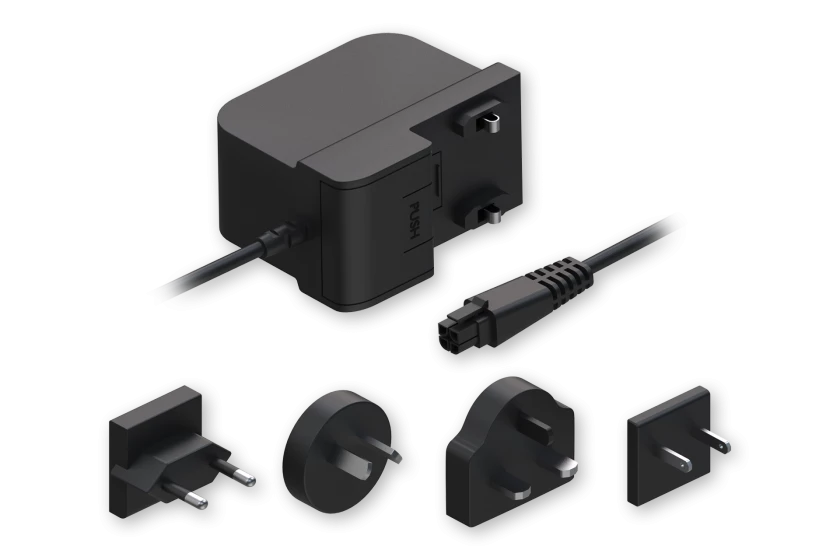

UNIVERSAL POWER SUPPLY, 9W

TECHNICAL DATA

GENERAL

Input voltage

100 ? 240 VAC

Input frequency

50 / 60 Hz

Input current

0.45 A

Input connector

Exchangeable. EU (Type C), US (Type A), UK (Type G) and AU (Type I) included

Output voltage

9 VDC

Output current

1.0 A

Output connector

4-pin, 3 mm pitch

ADDITIONAL

Input voltage range

90 ? 264 VAC

Input frequency range

47 ? 63 Hz

Maximum input inrush current

60 A

Output voltage maximum deviation

8.55 ? 9.45 VDC

Leakage current

0.25 mA

Ripple and noise

200 mV

Output over current protection

2 A

Standby power

0.1 W

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

30000 h

PSU efficiency standard

DoE Level VI

Certification

EMC: EN 55032:2015, FCC Part 15B?

EMI: EN 55035:2017, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004?

Safety: EN 62368-1:2014+A11:2017, UL 62368-1:2014 Ed.2, CSA C22.2 No. 62368-1:2014 Ed.2, AS/NZS 62368.1:2018
