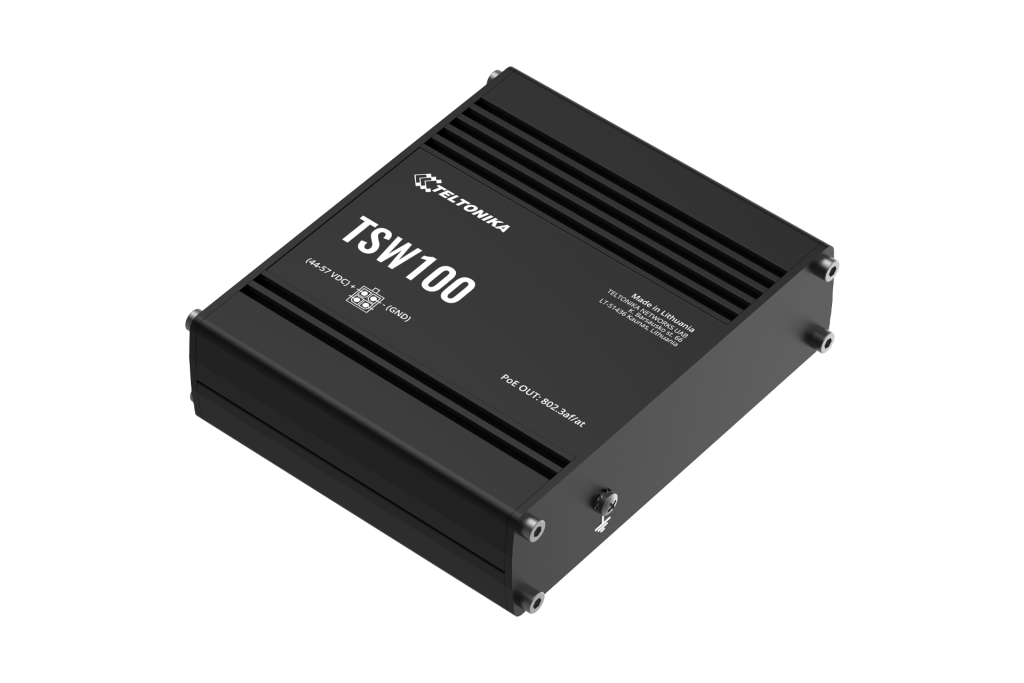

Switch TELTONIKA TSW100

5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Profinet Class A conformance (available with optional order code)

Port 1 – 4

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 *1****)

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 *0****)

30 W

120 W

10 Gbps

128 KB

2K entries

9216 bytes

4-pin industrial DC power socket

7 – 57 VDC

44 – 57 VDC

Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W

5 x RJ45 ports, 10/100/1000 Mbps

1 x Power LED, 10 x ETH status LEDs

1 x 4-pin power connector

1 x Grounding screw

Full aluminium housing

115 x 32.2 x 101.2 mm

350 g

DIN rail, wall mount, flat surface (all require additional kit)

-40 °C to 75 °C

5% to 95% non-condensing

IP30

CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark

EN 55032:2015

EN 55035:2017

EN 301 489-1 V2.2.3

EN 61000-4-2:2009

EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

EN 61000-4-4:2012

EN 61000-4-5:2014

EN 61000-4-6:2014

EN 61000-4-11:2004

IEC 62368-1:2018

EN IEC 62368-1:2020+A11:2020
