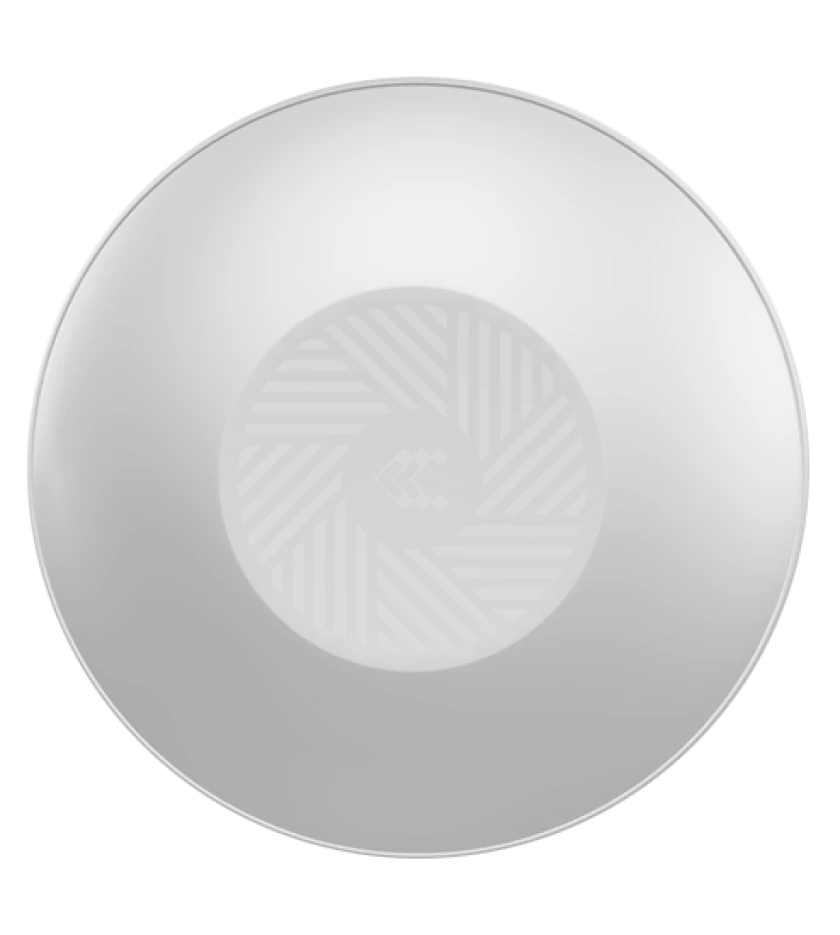

TELTONIKA WI-FI ACCESS POINT TAP200 cu PoE INJECTOR

Wireless

Wireless mode

802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi security

WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID

ESSID stealth mode (Hide SSID)
Wi-Fi users

Up to 100 simultaneous connections
Wireless Connectivity Features

Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter

Allowlist, blocklist
Wireless QR code generator

Once scanned, a user will automatically enter your network without needing to input login information
TravelMate

Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH
DNS over HTTPS

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Hotspot 2.0

Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
Traffic Management

Real-time monitoring, wireless signal charts, traffic usage history

802.1x

Port-based network access control client
Authentication

SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator
VLAN

Tag-based VLAN separation

Protocol

HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

Teltonika Networks Web API (beta) support

Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log
FOTA

Firmware update from server, automatic notification
SSH

SSH (v1, v2)
Email

Receive email message status alerts of various services
JSON-RPC

Management API over HTTP/HTTPS
RMS

Teltonika Remote Management System (RMS)

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA

Update FW
RMS

Update FW/configuration for multiple devices at once
Keep settings

Update FW without losing current configuration
Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

Operating system

RutOS (OpenWrt based Linux OS)
Supported languages

Busybox shell, Lua, C, C++
Development tools

SDK package with build environment provided
GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager

The Package Manager is a service used to install additional software on the device

Ethernet

1 x RJ45 port, 10/100/1000 Mbps
Status LEDs

1 x Power LED (can be turned off from web-UI)
Antennas

2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
Antennas specifications

2 x 2400 – 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional

2 x 5150 – 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
Reset

Reboot/User default reset/Factory reset button

Regulatory

CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, RoHS, REACH, WEEE, SDPPI (POSTEL)
