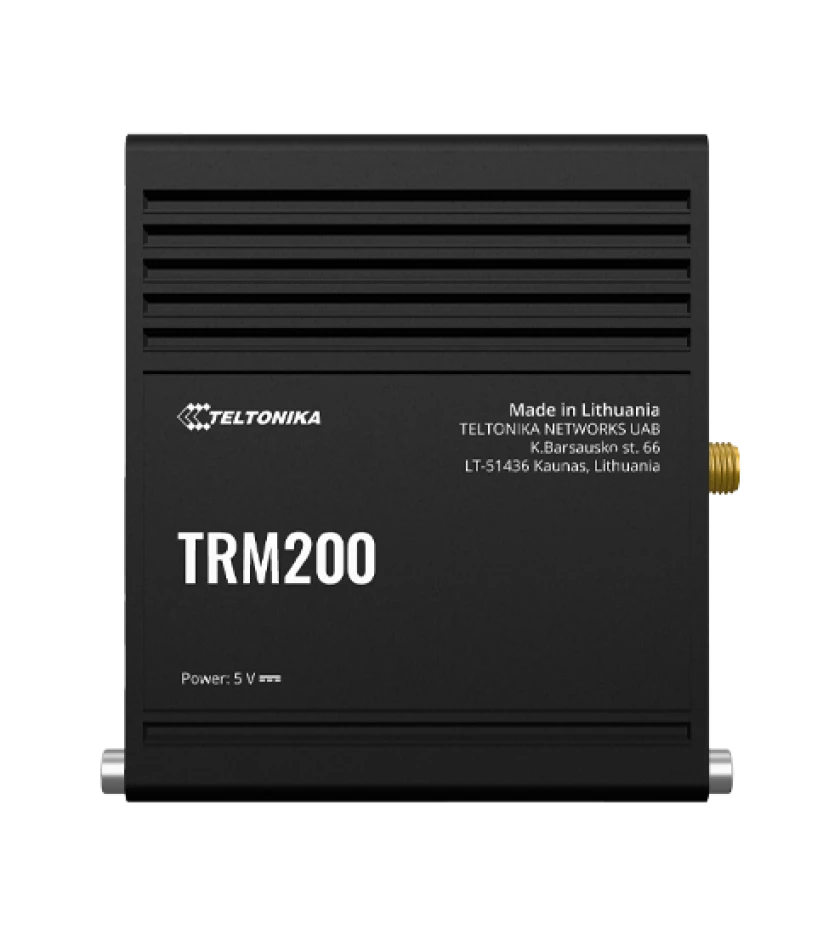

SKU: TRM200000000
Mobile module
4G – Cat 4 up to 75 DL/50 UL Mbps, 3G – Up to 42 DL/5.76 UL Mbps, 2G – Up to 236.8 DL/ 236.8 UL kbps
3GPP Release
Release 9
Connector
microUSB
Input voltage range
5V – powered via microUSB
Power consumption
Idle: < 0.9 W, Max: < 3.2 W
Status LEDs
1 x Power LED, 1 x Network LED, 1 x Mobile LED
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power
1x microUSB
Antennas
1 x SMA for Mobile
Casing material
Aluminium housing
Dimensions (W x H x D)
74.5 x 25 x 64.5 mm
Weight
274 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
TRM SOFTWARE USB Driver RUT#03
Windows 7/8/8.1/10, Linux 2.6 or later, Android 2.3/4.0/4.2/4.4/5.0/5.1/6.0/7.0
NDIS Driver
Windows 7/8/8.1/10
Regulatory
CE, UKCA, CB, EAC, UCRF, WEEE
