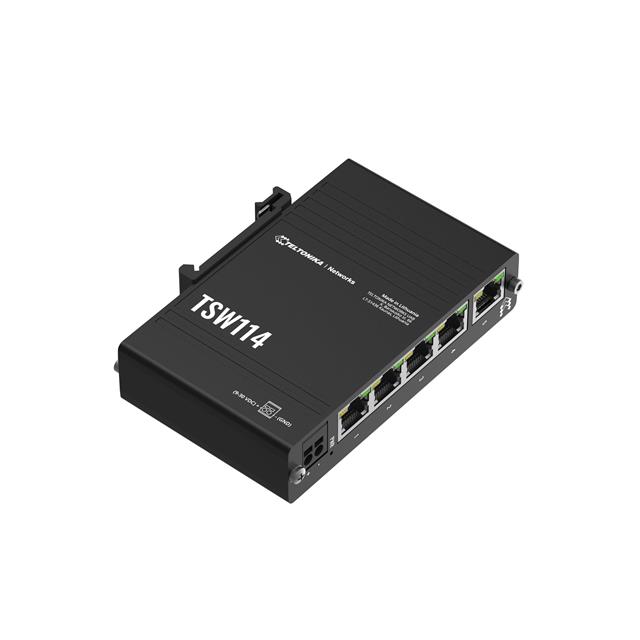

Switch TSW114000000

SKU: TSW114000000

LAYER 2 INDUSTRIAL UNMANAGED SWITCH, 5 x Gigabit Ethernet with speeds up to 1000 Mbp, Rugged aluminium housing, 2-pin power DC socket 9 - 30 VDC, DIN rail mounting options

243.26 lei (TVA inclus)

În stoc

Mai multe detalii

Discounturi disponibile pentru categorie

Comenzi peste 2500 lei → 3% reducere
Comenzi peste 5000 lei → 5% reducere
Comenzi peste 10000 lei → 10% reducere

TSW114

GIGABIT DIN RAIL ETHERNET SWITCH

TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments – especially control cabinets.

Ethernet

ETH

5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance Specifications

Bandwidth (Non-blocking)

10 Gbps
Packer buffer

128 KB
MAC address table size

2K entries
Jumbo frame support

9216 bytes

Power

Connector

2-pin industrial DC power socket
Input voltage range

9 – 30 VDC
PoE (passive)

Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
Power consumption

Idle: 0.3 W / Max: 2.3 W

Physical Interfaces

Ethernet

5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs

1 x Power LED, 10 x ETH status LEDs
Power

1 x 2-pin industrial DC power socket
Other

1 x Grounding screw

Physical Specification

Casing material

Anodized aluminum housing and panels
Dimensions (W x H x D)

113.1 x 27.4 x 80.5 mm
Weight

174 g
Mounting options

Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
