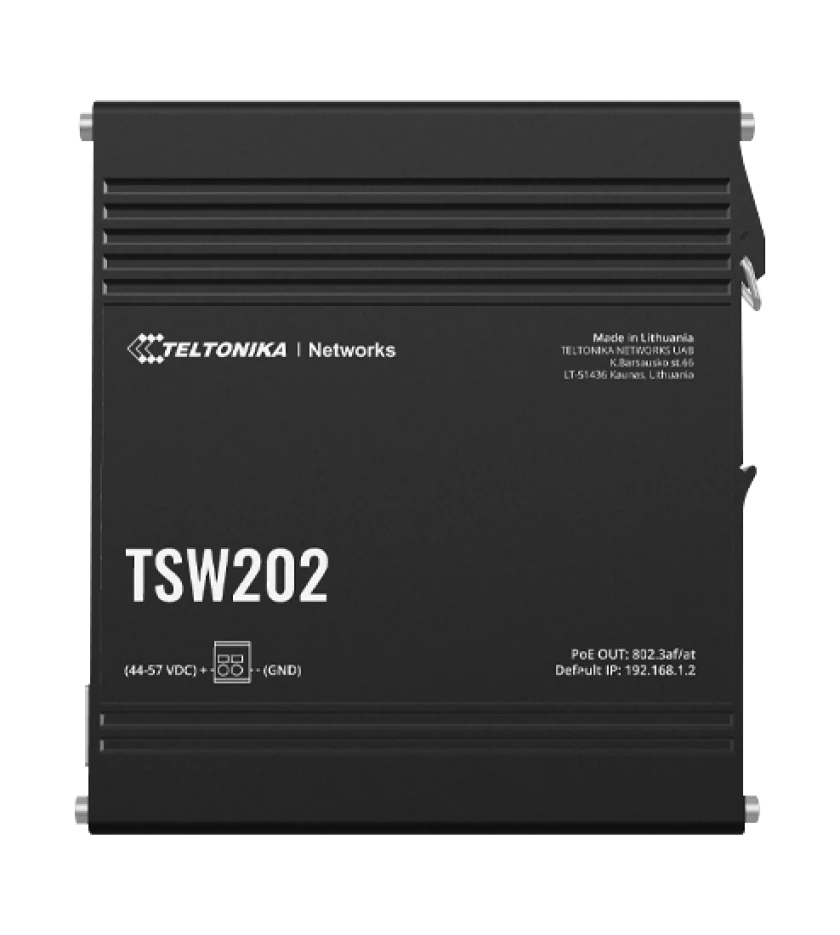

Switch TELTONIKA TSW202

TSW202 is the first-ever Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fibre optic communication and 8 Gigabit Ethernet ports providing 30 W of power each.

MANAGED SWITCH

L2 with additional L3 features for enhanced management and control

POE+ & SFP

8 x port PoE+ switch with 2 x SFP ports for fibre optic communication

PROFINET & MORE

Supports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP

TSWOS

Teltonika Networks OS for switches, intuitively designed for infinite configurations

ETHERNET

LAN Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre 2 x SFP ports
IEEE 802.3 series standards IEEE 802.1p, IEEE 802.1Q, 802.3az

POE

PoE ports Port 1 – 8
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 240 W
Maximum Ethernet cable length 100 m

SERVICES

EtherNet/IP Yes
Profinet (class B) Yes
SNMP V2, V3 Yes
LLDP Yes

NETWORK

MRP MRP client role, MRP manager role
L2 features Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP DHCP server, DHCP client
Port Settings Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

QOS Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method SP/WFQ/WRR
Bandwidth control Rate limiting, storm control

DIAGNOSTICS

Tools Cable diagnostic, ping, traceroute, nslookup

SYSTEM CHARACTERISTICS

RAM 128MB, DDR3
FLASH storage 16 MB serial flash

FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration

FIRMWARE CUSTOMISATION

Operating system TSWOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking) 20 Gbps
Packet buffer 512 KB
MAC address table size 8K entries
Jumbo frame support 10000 bytes

POWER

Connector 2-pin industrial DC power socket
Input voltage range 7 – 57 VDC
PoE-out input voltage range 44 – 57 VDC
Power consumption Idle: < 3 W / Max: 8 W / PoE Max: 240 W

PHYSICAL INTERFACES

Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fibre 2 x SFP ports
Status LEDs 1 x Power LED, 1 x Aux LED, 16 x LAN status LEDs, 2 x SFP status LEDs
Power 1 x 2-pin industrial DC power socket
Reset Software reset button
Other 1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 132 x 44.2 x 122.2 mm
Weight 610 g
Mounting options Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
