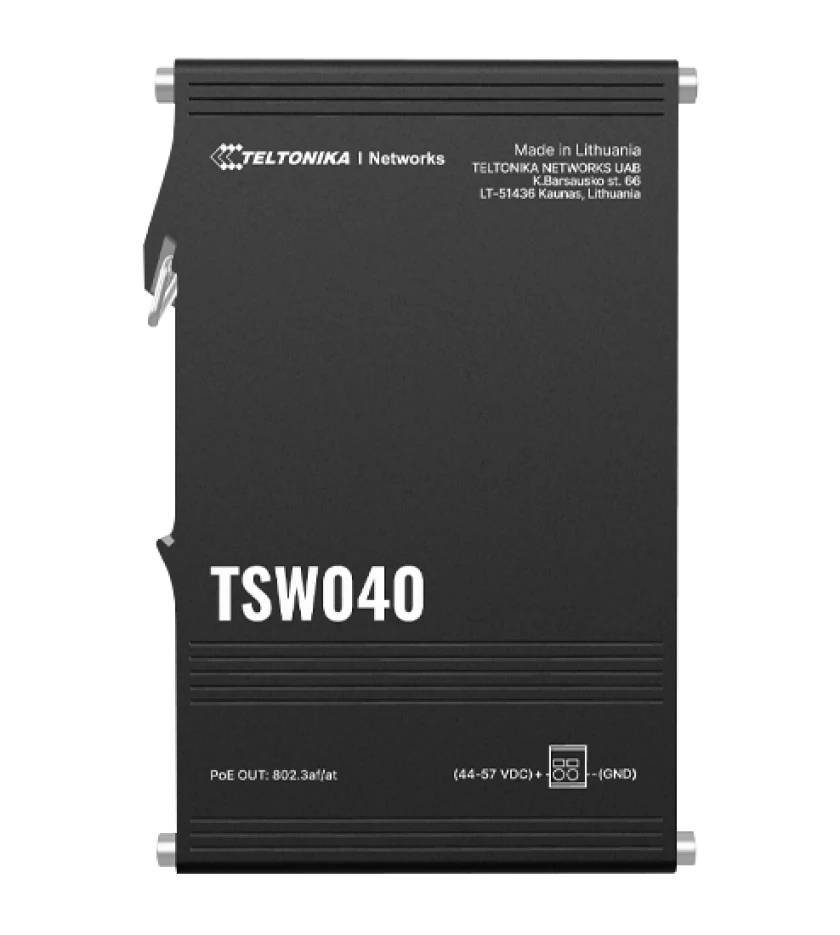

SWITCH TELTONIKA FARA MANAGEMENT TSW040

SKU: TSW040000000

INDUSTRIAL UNMANAGED SWITCH, Integrated DIN rail bracket, 8 x LAN POE ports 10/100 Mbps, total budget 240W, compliance with IEEE 802.3, IEEE 802.3u standards, auto MDI/MDIX crossover, 2 pin power, 7-57 VDC, or 44-57 VDC for PoE-out ***without power supply

321.86 lei (TVA inclus)

În stoc

Mai multe detalii

Discounturi disponibile pentru categorie

Comenzi peste 2500 lei → 3% reducere
Comenzi peste 5000 lei → 5% reducere
Comenzi peste 10000 lei → 10% reducere

Ethernet

Ethernet

8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

Profinet

Profinet Class A conformance (available with optional order code)

POE OUT

PoE ports

Port 1 – 8
PoE standards

802.3af and 802.3at compliant PSE ports, over spare pairs – Mode B
PoE Max Power per Port (at PSE)

30 W
Total PoE Power Budget (at PSE)

240 W

Performance Specifications

Bandwidth (Non-blocking)

20 Gbps
Packer buffer

128 KB
MAC address table size

2K entries
Jumbo frame support

9216 bytes

Power

Connector

2-pin industrial DC power socket
Input voltage range

7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
PoE-out input voltage range

44 – 57 VDC
Power consumption

Idle: 1 W / Max: 2 W / PoE Max: 246 W

Physical Interfaces

Ethernet

8 x RJ45 ports, 10/100 Mbps
Status LEDs

1 x Power LED, 16 x ETH status LEDs
Power

1 x 2-pin industrial DC power socket
Other

1 x Grounding screw

Physical Specification

Casing material

Anodized aluminum housing and panels
Dimensions (W x H x D)

113.1 x 41.2 x 74.6 mm
Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Weight

280 g
