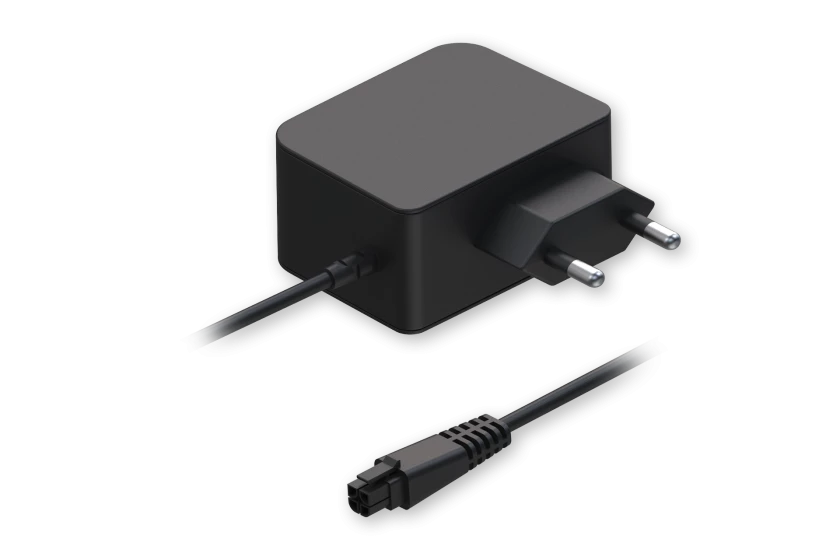

EU POWER SUPPLY, 18W

TECHNICAL DATA

GENERAL

Input voltage

100 ? 240 VAC

Input frequency

50 / 60 Hz

Input current

0.6 A

Input connector

EU (Type C)

Output voltage

12 VDC

Output current

1.5 A

Output connector

4-pin, 3 mm pitch

Weight

89.8 g

ADDITIONAL

Input voltage range

90 ? 264 VAC

Input frequency range

47 ? 63 Hz

Maximum input inrush current

60 A

Output voltage maximum deviation

11.4 ? 12.6 VDC

Short circuit protection

?

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

30000 h

Certification

Safety: : IEC 62368-1:2014, EN 62368-1:2014+A11:2017

EMC: EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019

Energy efficiency: Level VI
