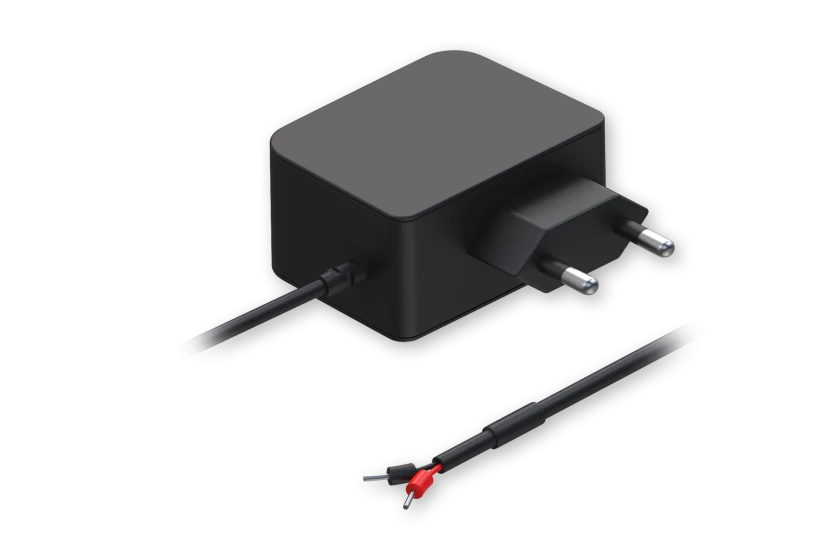

EU 2-PIN POWER SUPPLY, 9W

TECHNICAL DATA

GENERAL

Input voltage

100 ? 240 VAC

Input frequency

50 / 60 Hz

Input current

0.45 A

Input connector

EU (Type C)

Output voltage

9 VDC

Output current

1.0 A

Output connector

2-pin, with cord end terminals

Weight

81 g

ADDITIONAL

Input voltage range

90 ? 264 VAC

Input frequency range

47 ? 63 Hz

Maximum input inrush current

60 A

Output voltage maximum deviation

8.55 ? 9.45 VDC

Short circuit protection

?

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

30000 h

PSU efficiency standard

DoE Level VI

Certification

Safety: IEC 62368-1:2014, EN 62368-1:2014+A11:2017 (CB Scheme)

EMC: EN 55032:2015, EN 55035:2017
