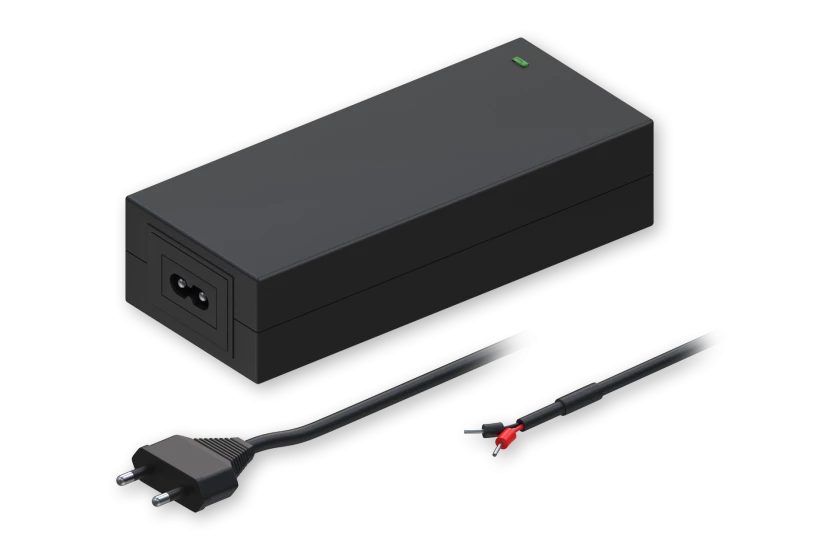

EU 2-PIN POWER SUPPLY, 62W

TECHNICAL DATA

GENERAL

Input voltage

100 ? 240 VAC

Input frequency

50 / 60 Hz

Input current

1.5 A

Input connector

EU (Type C)

Output voltage

48 VDC

Output current

1.3 A

Output connector

2-pin, with cord end terminals

Weight

305 g

ADDITIONAL

Input voltage range

90 ? 264 VAC

Input frequency range

47 ? 63 Hz

Maximum input inrush current

50 A

Output voltage maximum deviation

45.6 ? 50.4 VDC

Short circuit protection

?

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

50000 h

Certification

Safety: EN 61558-1:2005/A1:2009, EN 61558-2-16:2009/A1:2013 (CB Scheme)

EMC: EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015
