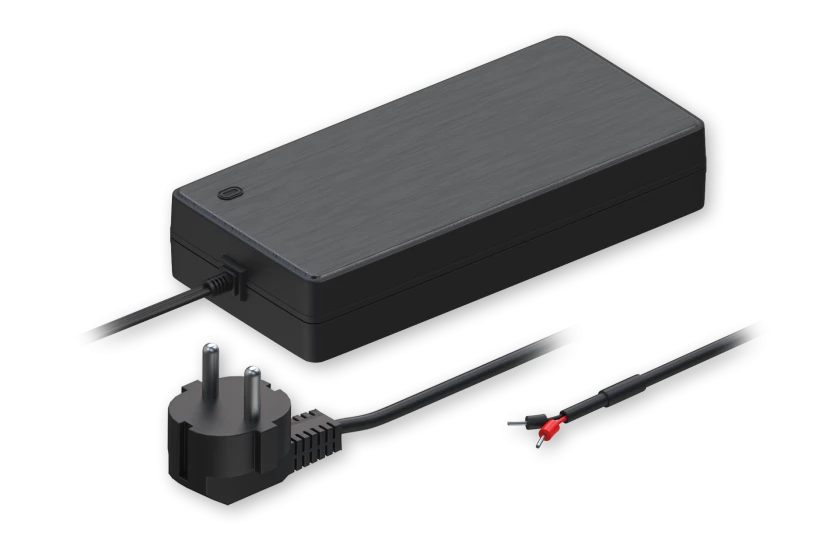

EU 2-PIN POWER SUPPLY, 250W

TECHNICAL DATA

GENERAL

Input voltage

100 ? 240 VAC

Input frequency

50 / 60 Hz

Input current

3.9 A

Input connector

EU (Type F)

Output voltage

54 VDC

Output current

4.62 A

Output connector

2-pin, with cord end terminals

Weight

1080 g

ADDITIONAL

Input voltage range

90 ? 264 VAC

Input frequency range

47 ? 63 Hz

Maximum input inrush current

60 A

Output voltage maximum deviation

51.3 ? 56.7 VDC

Short circuit protection

?

HIPOT (dielectric withstand test)

Primary to Secondary: 1500 VAC

Certification

Safety: IEC62368-1 (CB Scheme)

EMC: EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010, EN 61000-4-11:2004?
