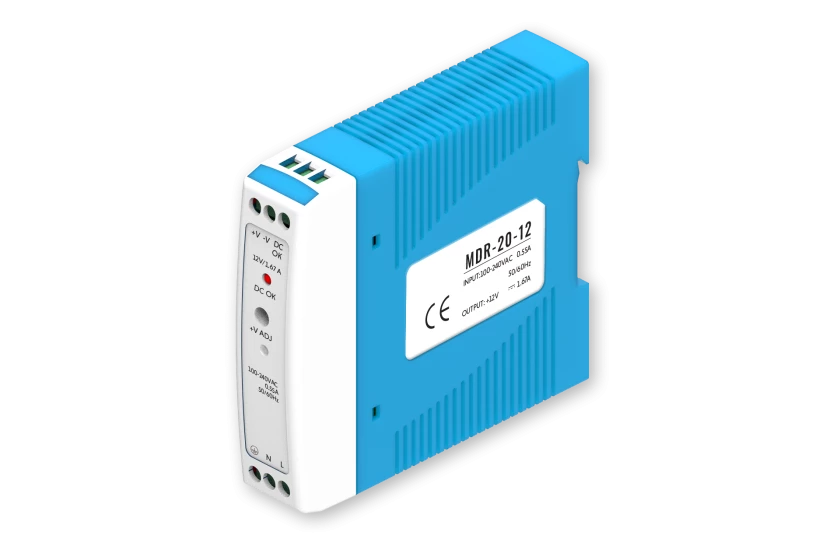

DIN RAIL POWER SUPPLY

TECHNICAL DATA

Single output power

20 W

Input voltage range

85 – 264 VAC 47 – 63 Hz

DC output voltage

12 V

DC output current

0 – 1.67 A

Output ripple and noise

120 mVp-p

Line regulation

?1 %

Load regulation

?1 %

Efficiency

80 %

Adjustable range for DC voltage

?1 %

Test standard

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

EN 55022:2010

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55024:2010/A1:2015

Inrush current

Cold start current 20 A / 115 VAC; 40 A / 230 VAC

Overload protection

105 % – 160 % cut off the output, automatic recovery

Over voltage protection

120 % – 140 % shut down O/P voltage, off / on cycle required for recovery

Setup, rise, hold up time

500 ms, 30 ms / 230 VAC at full load; 1000 ms, 30 ms / 115 VAC at full load

Withstand voltage

I/P-O/P: 1.5 kV; I/P-FG: 1.5 kV; O/P-FG: 0.5 kV 1 minute

Isolation resistance

I/P-O/P I/P-FG O/P-FG: 500 VDC / 1000 M?

Working temperature

-10 ?C – +50 ?C?

Mounting options

35 mm DIN Rail

Dimensions

22.5 x 90 x 100 mm

Weight

190 g
