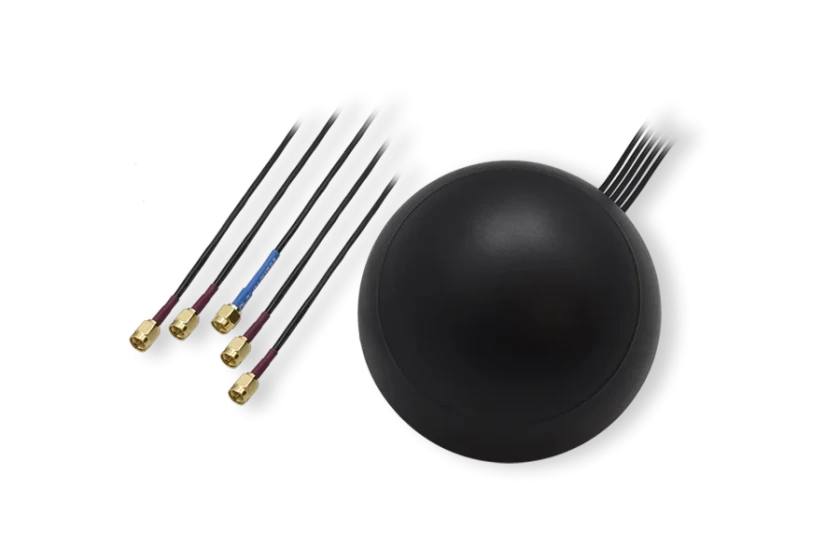

COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA

MECHANICAL/ENVIRONMENTAL

Mounting method

Screw

Radome ingress protection rating

IP65 (exclude cable outlet)

Radome material

UV resistant plastic and cable

Housing dimensions

? 110.0 x 53.0 mm

Cable

5x RG174, 3000 mm

Operating temperature

– 40 ?C ~ +85 ?C

Weight

525 ? 10 g

UV resistance

?

RoHS compliant

?

GNSS ANTENNA

Frequency range

1575.42 ? 3 MHz

Polarization

RHCP

LNA gain

28 ? 2 dB

LNA noise figure

? 1.5 dB

V.S.W.R

< 2.0

Impedance

50 ?

Supply voltage

3 ? 5 VDC

Current consumption

< 15 mA

Connector type and count

SMA Male

LTE MIMO ANTENNA

Frequency range

698 ? 960, 1710 ? 2690 MHz

Polarization

Linear

Gain

3.0 dBi

V.S.W.R

< 3.0

Impedance

50 ?

Connector type and count

4x SMA Male
