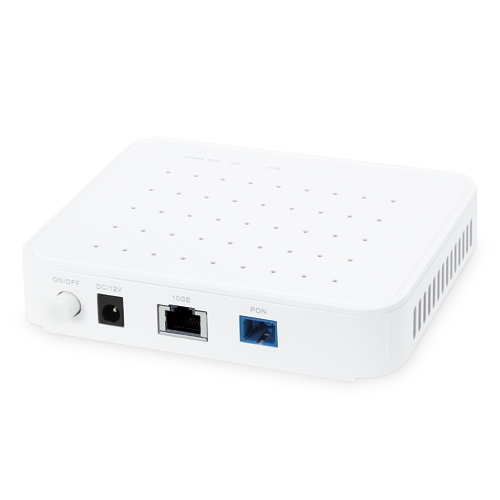

SKU: XGPN-100
| Hardware Specifications | |
|---|---|
| UNI Port | 1 x 10GBASE-T RJ45 port backward compatible with 100/1G/2.5G/5GBASE-T |
| PON Port | Transmission rate: Downlink 10Gbps/uplink 10Gbps Network Coverage Radius: 20 kilometers Receiver Sensitivity: ≤-28dBm Transmit Optical Power: 0.5~5dBm Optical interface type: SC/UPC |
| Reset Button | Press for about 15 seconds to reset the device to factory default |
| Thermal Fan | Fanless |
| LED Indicators | PWR (Green) PON (Green) LOS (Red) 10GE (Green) |
| Installation | Desktop installation or wall mounting |
| Power Requirements | 12V AC, 1A max. |
| Power Consumption | 6W max. |
| Weight | 236g |
| Dimensions (WxDxH) | 140.06 x 105.06 x 27.4mm |
| Enclosure | Plastic |
| Heat Dissipation | Extended use of up to 24 hours does not result in performance degradation or damage due to device overheating or deformation. |
| Router Features | |
| Data Forwarding | Routing mode, bridging mode, and hybrid mode (routing and bridging) |
| DNS | DNS Relay |
| DHCP | DHCP server |
| VLAN | Port-based VLAN IEEE 802.1Q VLAN |
| Multicast | IGMP snooping IGMP proxy MLD snooping MLD proxy |
| QoS | Backpressure flow control (Half-duplex) IEEE 802.3x flow control (Full-duplex) Head-of-Line blocking prevention mechanism IEEE 802.1p, CoS 8 priority queues per port WR, SP, and FIFO queue scheduling algorithms Port rate limiting |
| Reliability | Loop detection function Dying gasp function Type B dual-homing protection |
| Security | Port protection Firewall: MAC/IP/Port/URL/Domain name filtering DDoS protection Port storm suppression Port mapping |
| Management Configuration | Supports multiple management methods: Web, TELNET, TR069, OMCI, and OAM Firmware upgrade via TFTP/WEB/TR069/OLT |
| Standards Conformance | |
| Standards | ITU-T G.987.3, G.988, G.989 Supports China Communications Industry Standard GB/T 43699-2024 „Access Network Technical Requirements for 10Gbit/s Symmetrical Passive Optical Network (XGS-PON)” IEEE 802.1Q, VLAN |
| Environment Specifications | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
