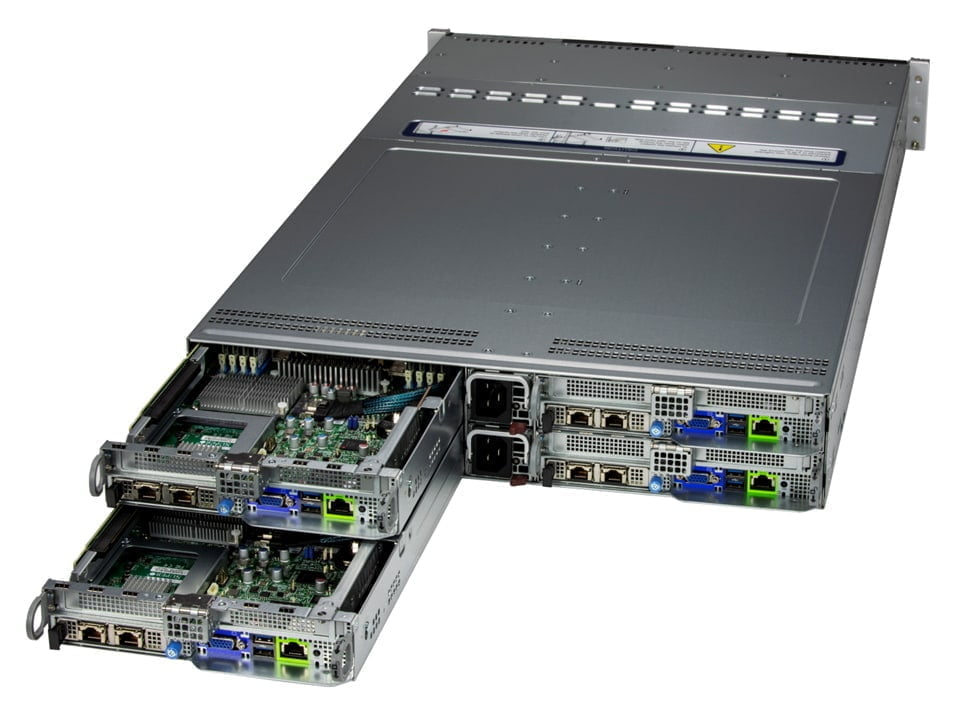

SERVER SUPERMICRO SYS-621BT-HNTR

Key Applications

• Hyperconverged Infrastructure
• Container Storage
• Scale-Out File Server

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. Socket E (LGA 4677) support 4th Gen Intel® Xeon® Scalable processors
2. Intel® C741
3. Up to 16 DIMMs ECC DDR5 Slots
4. • 2 PCIe 5.0 x16 (LP) slot;
   • Tool-less support
   • Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
   • Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1
5. Network connectivity via AIOM (OCP 3.0 compliant)
6. 3 hot-swap 3.5″ drive bays (2x PCIe 5.0 NVMe and 1x PCIe 4.0 NVMe/SATA)
7. • 4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
   • Liquid Cooling Support
8. 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
