Key Applications
- High Performance Computing
- Hyper-Converged Infrastructure
- Big Data / Big Science
Key Features

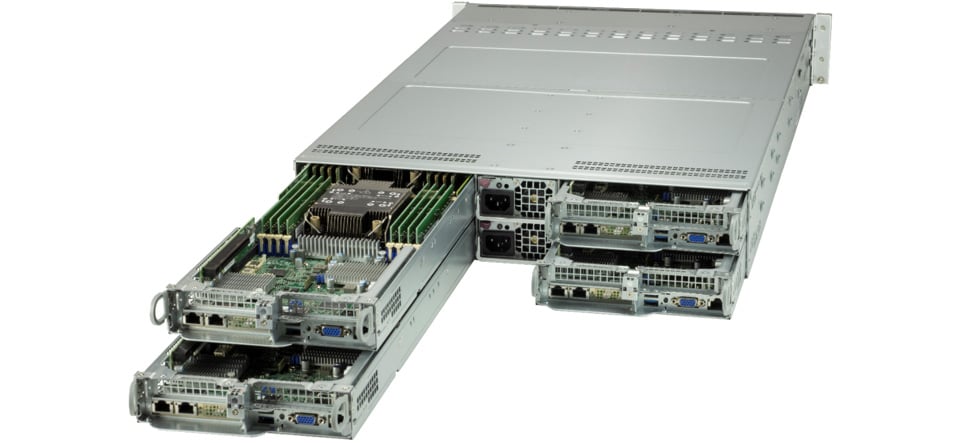

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
- Intel® C621A chipset
- 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
- 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22×80 mm)
- Intel® X710 Dual port 10GBase-T LAN onboard
- 3x 3.5″ hot-swap SATA/SAS drive bays
- 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
- Two 2200W redundant power supplies with PMBus
-
- ASPEED AST2600 BMC, 2 USB, VGA. RoT
- Broadcom® 3908 SAS (12Gbps); 3 slots per node; RAID 0, 1, 5 support.
|
- Brand: SUPERMICRO
- Generatie: X12
- Procesor: INTEL
- Rackmount: 2U
- compari: Server
