Key Applications
- High-Performance File System
- Diskless HPC Clusters
- Scale Out All-Flash NVMe Storage
- Big Data Analytics and AI
Key Features

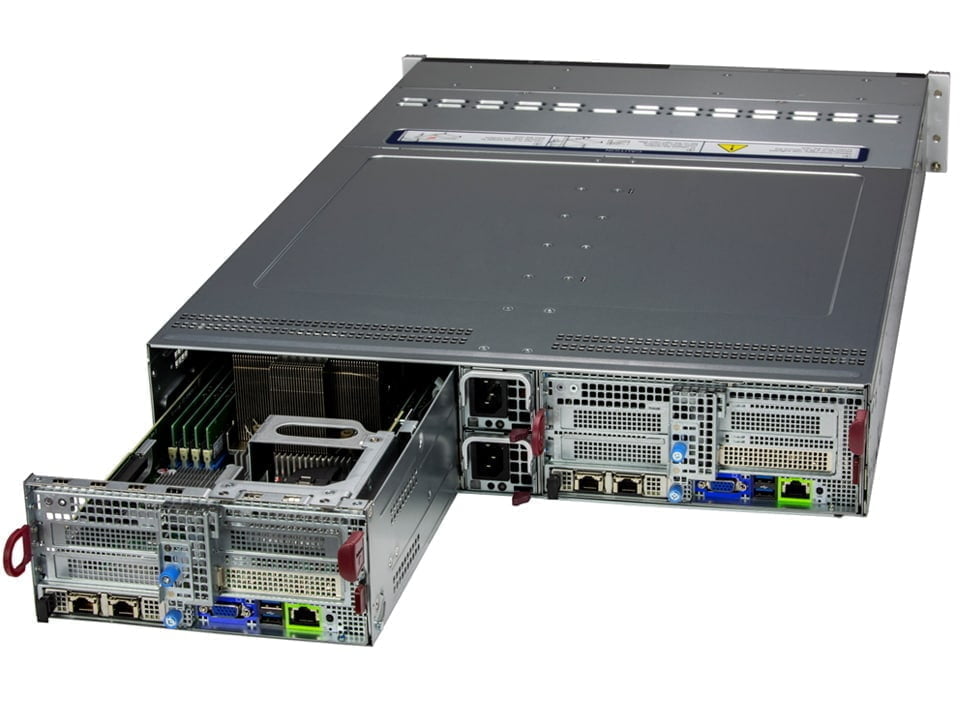

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Socket E (LGA 4677) support 4th Gen Intel® Xeon® Scalable processors
- Intel® C741
- Up to 16 DIMMs ECC DDR5 Slots
-
- 1 PCIe 5.0 x16 (LP) slot;
- 2 PCIe 5.0 x8 (LP) slot;
- Tool-less support
- Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
- Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1
- Network connectivity via AIOM (OCP 3.0 compliant)
- 12 hot-Swap 2.5” drive bays (2x PCIe 5.0 NVMe and 10x PCIe 4.0 NVMe/SATA)
-
- 4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
- Liquid Cooling Support
- 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
|
- Brand: SUPERMICRO
- Generatie: X13
- Procesor: INTEL
- Rackmount: 2U
- compari: Server
