Key Applications
- All-Flash Hyperconverged Infrastructure
- All-Flash Storage Area Network
- All-Flash Object Storage
Key Features

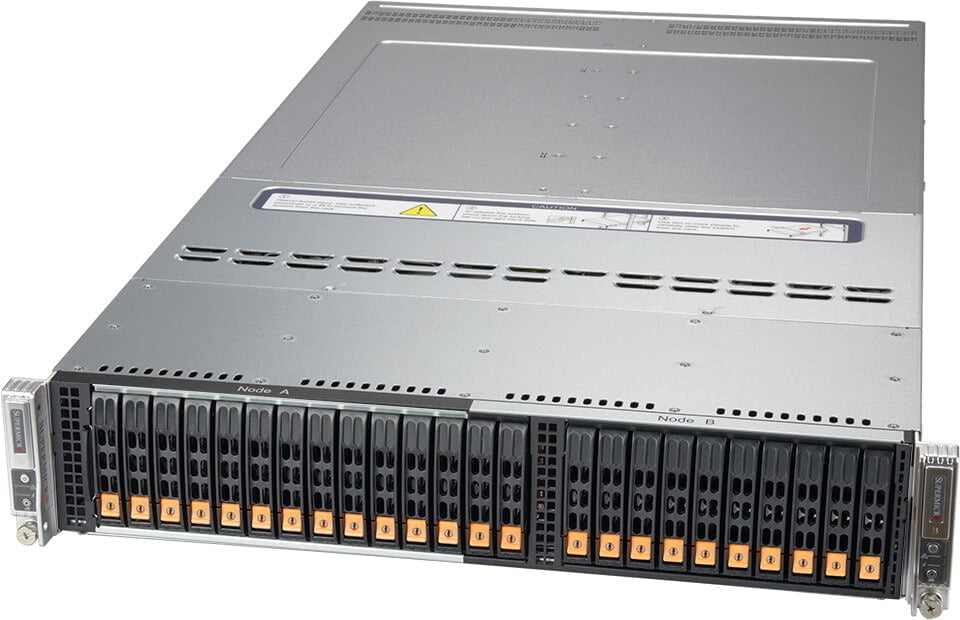

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A
- 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
-
- 1 PCIe 4.0 x16 (LP) slot;
- 1 PCIe 4.0 x8 (LP) slot;
- Tool-less support
- Internal PCIe 4.0 x8 for 2 M.2 NVMe/SATA support onboard
- Optional NVMe Boot Controller via AOC-SMG3-2M2-B
- Network connectivity via AIOM (OCP 3.0 compliant)
- 12 Hot-swap 2.5″ drive bays; 12 PCIe 4.0 NVMe/SAS/SATA 2.5″ drives
-
- 2 cooling fans per node, 16.5K RPM
- Liquid Cooling Support
- 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
- Built-in SAS3 Support via Broadcom 3816; IT Mode
|
- Brand: SUPERMICRO
- Generatie: X12
- Procesor: INTEL
- Rackmount: 2U
- compari: Server
