Key Applications
- HPC
- Cloud Gaming
- MEC (Multi-Access Edge Computing)
- Multi-Purpose CDN
- High-availability Cache Cluster
- Telco Edge Cloud
- EDA (Electric Design Automation)
- Mission Critical Web Applications
Key Features

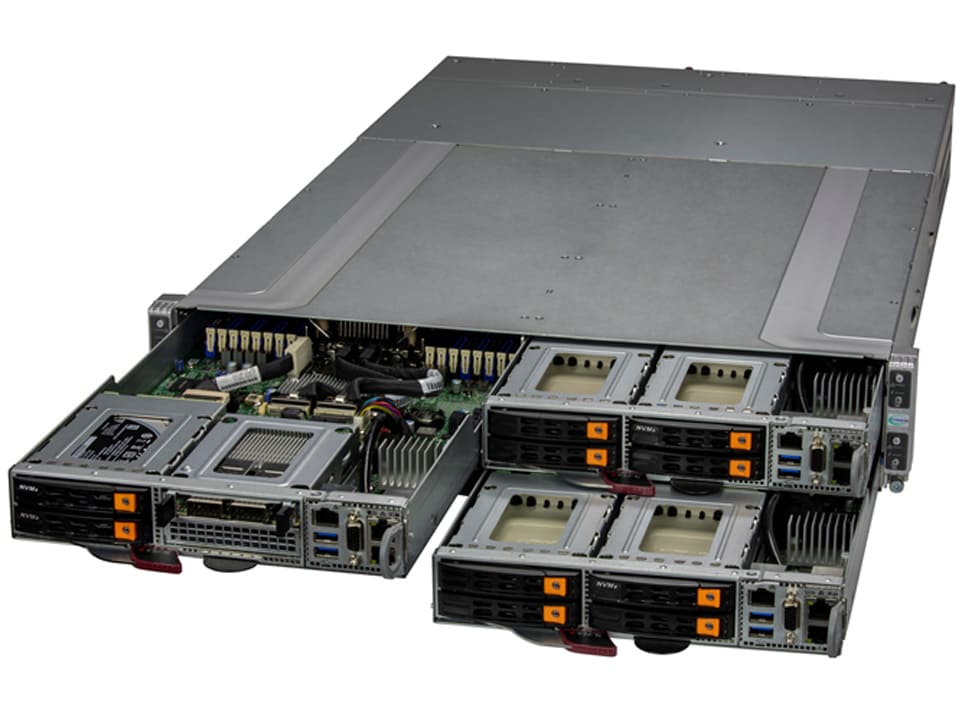

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Single-Socket, 3rd Gen Intel® Xeon® Scalable processors up to 270W TDP
- Intel® C621A
- 16 DIMM Slots up to 4TB (with Intel® Optane™ Persistent Memory support)
- Optional: AIOM PCIe 4.0 x16 LP (OCP 3.0 compliant)
- Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
- Up to 4 Hot-swap 2.5″ SAS/SATA drives
- 2x cooling fans per 2U enclosure, 16.5K RPM Heavy Duty; Shared Cooling Design
- 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
- Built-in SAS3 Support via Broadcom 3808; IT Mode
|
- Brand: SUPERMICRO
- Generatie: X12
- Procesor: INTEL
- Rackmount: 2U
- compari: Server
