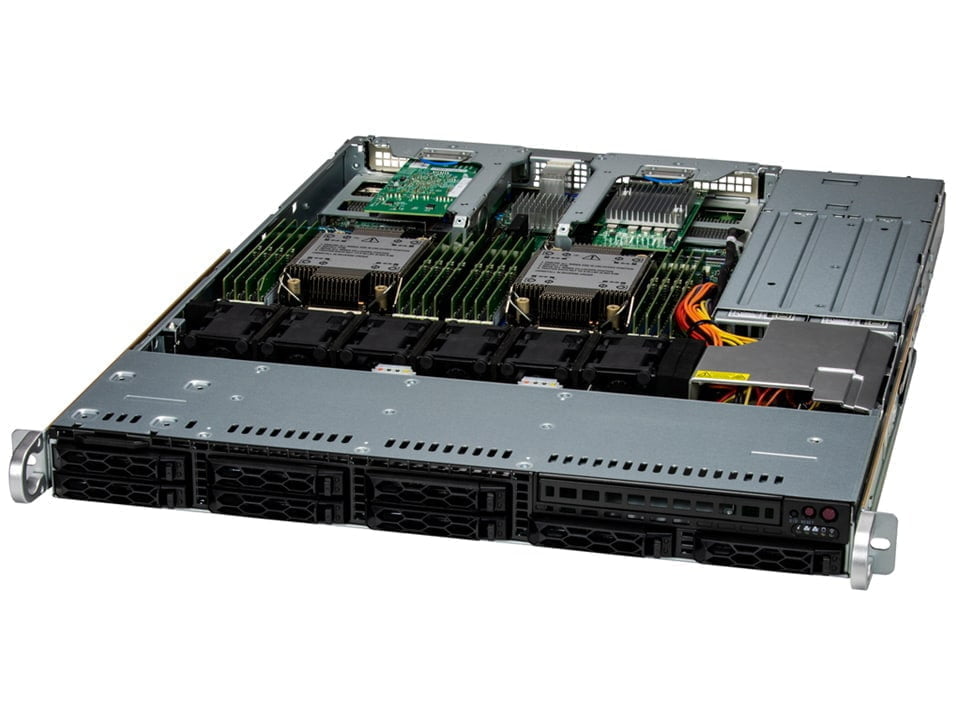

SKU: SYS-121C-TN2R
| Key Applications: Web Server, Firewall ApplicationData Center Optimized, Value IaaSCloud Computing, Compact ServerDNS & Gateway Servers, Firewall ApplicationCDN, Edge Nodes |
| Key Features: Dual sockets E (LGA-4677) 5th and 4th Gen Intel® Xeon® Scalable processors |
| 16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM |
| 2 PCIe 5.0 x16 FHHL; |
| 2 PCIe 5.0 x4 NVMe M.2 |
| Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN |
| 8x 2.5" hot-swap SATA/SAS w/ 2x hybrid NVME drive bays |
| 1 VGA, 1 COM, 2 USB 3.0 (rear) |
| 860W redundant Titanium level 100-127Vac, 200-240Vac and 240Vdc power supplie |
| BAREBONE | Server SYS-121C-TN2R | 1 |
| CPU | EMR 4510 2P 12C 2.4G 30MB 150W SGX64 (1xDSA) 7yr–P4X-EMR4510-SRN60-LCC | 2 |
| MEMORY | 16GB DDR5 5600 ECC REG–MEM-DR516MB-ER56 | 4 |
| NVMe | PM9A3 960GB NVMe PCIe 4×4 2.5″ 7mm (1DWPD) | 2 |
| ETHERNET | AIOM 2-port 1GbE RJ45, Intel i350-AM2 with 0.5U Bracket– AOC-AG-I2M-O | 1 |
