SKU: AS-1115CS-TNR
| • Web Server, Firewall Application• Data Center Optimized, Value IaaS• Cloud Computing, Compact Server• DNS & Gateway Servers, Firewall Application• CDN, Edge Nodes |
| Single 4th Generation AMD EPYC™ 9004 Series Processors |
| 12x DIMM slots, DDR5-4800memory |
| 2 PCI-E 5.0 x16 FHHL; 2 PCI-E 5.0 x16 AIOM (OCP 3.0); 2 PCI-E 5.0 x4 NVMe M.2 |
| Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN |
| 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays |
| *Full redundancy based on configuration and application load 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies |
| 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (front) |

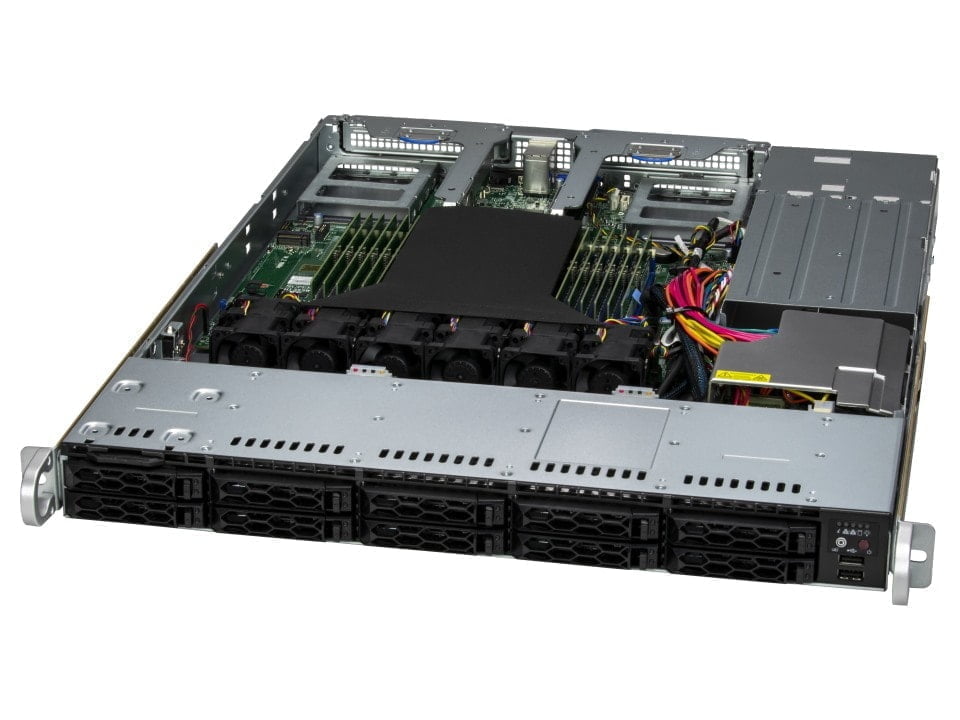

| BAREBONE | Server AS -1115CS-TNR | 1 |
| CPU | Genoa 9124 DP/UP 16C/32T 3.0G 64M 200W SP5–PSE-GEN9124-0802 | 1 |
| MEMORY | 16GB DDR5 5600 ECC REG–MEM-DR516MB-ER56 | 4 |
| SSD | PM893 960G SATA 6Gb/s V6 2.5 7mm 1DWPD | 2 |
| ETHERNET | AIOM 2-port 1GbE RJ45, Intel i350-AM2 with 0.5U Bracket– AOC-AG-I2M-O | 1 |
