SKU: IECC-210R
| Communication Interface | |
|---|---|
| Copper | Port：1 x 100BASE-TX RJ45 port Distance between Stations：max. 100 m (100BASE-TX) Data Transfer Medium：Ethernet/EtherCAT cable (min. cat5), shielded |
| Filer | Port：1 x 100BASE-FX SFP port Distance between Stations：Depending on the ability of SFP module Data Transfer Medium：Depending on the ability of SFP module |
| EtherCAT | |
| Protocol | EtherCAT |
| Power | |
| Input Voltage Range | 9~48V DC |
| Power Consumption | 1.92W max. |
| Mechanical | |
| Dimensions (W x D x H) | 30 x 70 x 104mm |
| Weight | 208g |
| Installation | DIN-rail and wall mounting |
| Case Material | IP30 metal |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Storage Temperature | -40~85 degrees C |
| Relative Humidity | 5~95% (non-condensing) |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Ordering Information | |
|---|---|
IECC-210R |

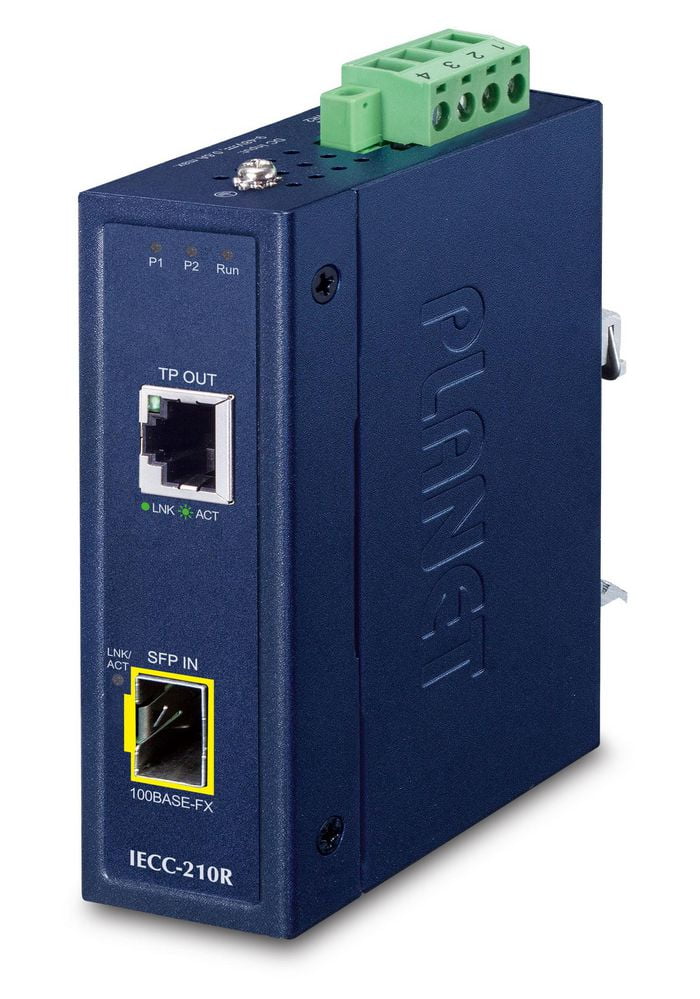

Industrial EtherCAT Media Converter ( RJ45 OUT, SFP IN) |
| Accessories | |
|---|---|
PWR-240-48 |
240W 48V DC Single Output Industrial DIN-rail Power Supply |
PWR-480-48 |
480W 48V DC Single Output Industrial DIN-rail Power Supply |
