SKU: MC-RPS48
| Hardware Specifications | |
|---|---|
| Hardware Version | 2 |
| Dimensions (W x D x H) | 440 x 350 x 88mm, 2U |
| Slot | 16 open slots (15 x 80 x 26mm, W x D x H) 2 power slots (one fixed, one vacant) |
| Weight | 7kg |
| Power Requirements | MC-1610MR: 100-240V AC, 1A, 50-60Hz MC-1610MR48: -48V DC, 2A, Range: -40V ~ -60V |
| Power Output | 5V DC per slot, 2A maximum |
| Power Consumption | MC-1610MR: 10 watts/34BTU (1 x power supply; converters not included) 46.9 watts/160 BTU (full loading) MC-1610MR48: 5.3 watts/18BTU (1 x power supply; converters not included) 96 watts/327 BTU (full loading) |
| Operating Environment | 0~50 degrees C, 5~90% RH |
| Storage Environment | -20~70 degrees C, 5~90% RH |
| Emission | FCC Class A, CE mark |
| Management Interface | |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Flow Control |
| Fixed Interface | 10/100/1000BASE-T port x 1, RS232 to RJ45 console port x 1, reset button x 1 |
| Speed | Ethernet: 10/20Mbps for half/full-duplex Fast Ethernet: 100/200Mbps for half-/full-duplex Gigabit Ethernet: 1000/2000Mbps for full-duplex |
| LED Indicator | System: MGM, Console, LNK/ACT, PWR ON x 2, PWR FAIL x 2, FAN FAIL x 2 |
| Management | Console, Web, SNMP v1/v2c |
| SNMP Trap | Cold Start, MC copper link up/down, MC fiber link up/down. |
| Ordering Information | |
|---|---|
MC-1610MR |
16-slot Managed Media Converter Chassis (AC power) |
MC-1610MR48 |
16-slot Managed Media Converter Chassis (DC power) |
MC-RPS130 |

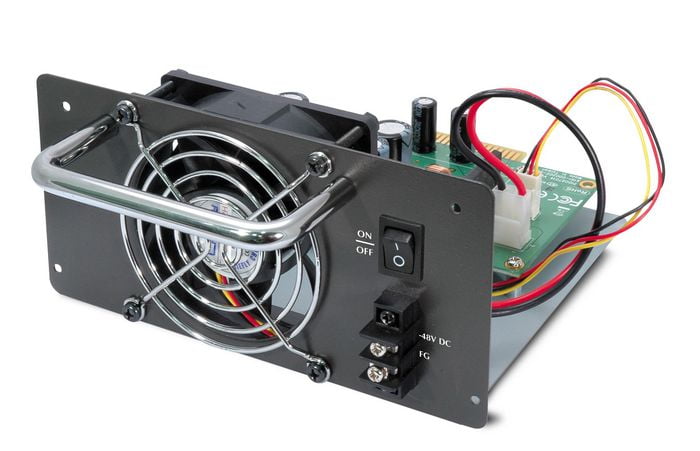

130W Redundant Power Supply (100-240V AC) |
MC-RPS48 |
Redundant Power Supply (-48V DC) |
