SKU: VF-101G-KIT
| Video Characteristics | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Video Channel | 1 channel bi-direction | ||||||||||||
| Signal Mode | NTSC/PAL/SECAM | ||||||||||||
| Video Connector | BNC | ||||||||||||
| Video Bandwidth | 60MHz | ||||||||||||
| Video Input/Output Voltage | 1.0 Vpp/typical peak-to-peak value | ||||||||||||
| Video Input/Output Impedance | 75ohm/unbalanced interface | ||||||||||||
| Supported Video Type | 1080p: AHD/TVI/CVI 480p: CVBS |
||||||||||||
| Video Digital Bit Width | 8/10 bit | ||||||||||||
| Differential Gain (DG) | < 1.3% (typical value) | ||||||||||||
| Differential Phase (DP) | < 1.3° (typical value) | ||||||||||||
| SNR Weighted | > 67dB (typical value) | ||||||||||||
| Data Interface | |||||||||||||
| Data Channel | 1 channel | ||||||||||||
| Physical Protocol | RS485 | ||||||||||||
| Operation Mode | Simplex | ||||||||||||
| Data Connector | 3-pin terminal block with screw clamps | ||||||||||||
| Data Rate | DC-115.2Kbps | ||||||||||||
| Bit Error Rate (BER) | < 10ns | ||||||||||||
| Optical Interface | |||||||||||||
| Optical Connector |
|
||||||||||||
| Distance | 20km for single mode | ||||||||||||
| Optical Wavelength |
|
||||||||||||
| Launch Power (dBm) | Max.: 0, Min.: -9 | ||||||||||||
| Receive Sensitivity (dBm) | -26 | ||||||||||||
| Max. Input Power (dBm) | -3 | ||||||||||||
| Cable | 9/125μm single mode cable | ||||||||||||
| Hardware Specifications | |||||||||||||
| LED Indicators |
|
||||||||||||
| Dimensions (W x D x H) | 94 x 70 x 26 mm | ||||||||||||
| Weight | 200g | ||||||||||||
| Power Requirement | 5V DC, 2A | ||||||||||||
| Power Consumption | 4.8 watts (maximum) | ||||||||||||
| Mechanical | Metal | ||||||||||||
| Installation | Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis) | ||||||||||||
| Compatible Converter Chassis | MC-700/MC-1500/MC-1500R | ||||||||||||
| Standards Conformance | |||||||||||||
| Regulatory Compliance | FCC, CE | ||||||||||||
| Environment | |||||||||||||
| Operating | Temperature: -25 ~ 70 degrees C Relative Humidity: 0 ~ 95% (non-condensing) |
||||||||||||
| Storage | Temperature: -30 ~ 80 degrees C Relative Humidity: 0 ~ 95% (non-condensing) |
||||||||||||
| Standard Accessories | |||||||||||||
| Packet Contents | VF-101G/102G/106G-T x 1 VF-101G/102G/106G-R x 1 User’s manual x 1 5V, 2A power adapter x 2 |
||||||||||||
| Ordering Information | |
|---|---|
VF-101G-KIT |

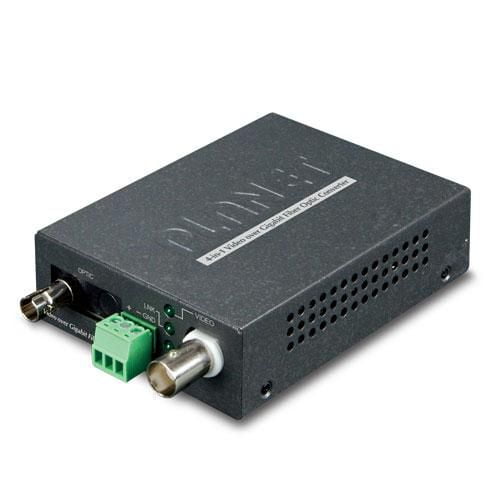

1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-101G-T + VF-101G-R) |
VF-102G-KIT |
1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-102G-T + VF-102G-R) |
VF-106G-KIT |
1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-106G-T + VF-106G-R) |
| Accessories | |
|---|---|
RKE-DIN |
DIN-Rail Mounting Kit |
