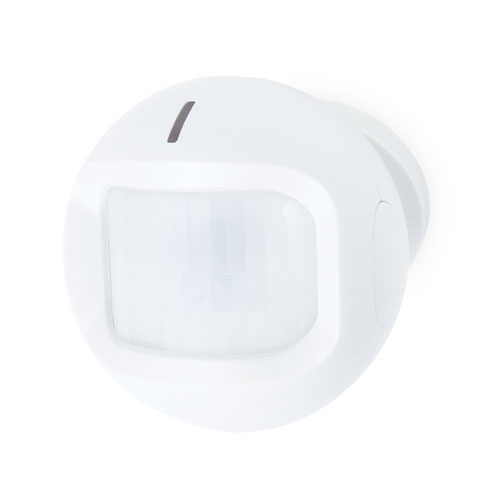

IP30 LoRaWAN Indoor Occupancy Sensor (Occupancy/Light/Temperature -20~55 degrees C, US915 Sub 1G, 2 x 3.6V ER14505 AA batteries required) LS100-PIR-915M

Brand: PLANET
Subcategorie: LoRaWAN Senzor
Software: Fara management
Poe: NON POE
Tip echipament: OFFICE
compari: Alte accesorii calculatoare
Tip senzor: Detector PIR/Lumina/Temperatura

SKU: LS100-PIR-915M

IP30 LoRaWAN Indoor Occupancy Sensor (Occupancy/Light/Temperature -20~55 degrees C, US915 Sub 1G, 2 x 3.6V ER14505 AA batteries required)

397.42 lei (TVA inclus)

Precomandă

Discounturi disponibile pentru categorie

Wireless Transmission
Technology	LoRaWAN
Frequency	LS100-PIR -EU868 863–870 MHz LS100-PIR -US915 902–928 MHz
TX Power	LS100-PIR -EU868 EU868 16dbm IN865 20dbm (optional) LS100-PIR -US915 US915 20dbm AS923 16dbm (optional) AU915 20dbm (optional) KR920 14dbm (optional)
Rx Sensitivity	-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps) -121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work Mode	OTAA/ABP Class A
Data Interfaces
Power Supply	2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating Voltage	DC 3.1V～3.65V
Battery Life Time	5 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current	110uA
Wake-up Current (Typical value)	9.78mA
Low Battery Threshold	3.2V
Physical Characteristics
Dimension (L x W x H)	78 x 78.8 x 82.2 mm
Weight	125.8g
Ingress Protection	IP30
Operating Temperature	-20°C to 55°C
Relative Humidity	<90% RH (non-condensing)
Storage Temperature	-40 °C ~ 85 °C
Standards Conformance
Regulatory Compliance	FCC PART 15B

Ordering Information
LS100-PIR-EU868	IP30 LoRaWAN Indoor Occupancy Sensor (Occupancy/Light/Temperature -20~55 degrees C, EU868 Sub 1G)
LS100-PIR-US915	IP30 LoRaWAN Indoor Occupancy Sensor (Occupancy/Light/Temperature -20~55 degrees C, US915 Sub 1G)
