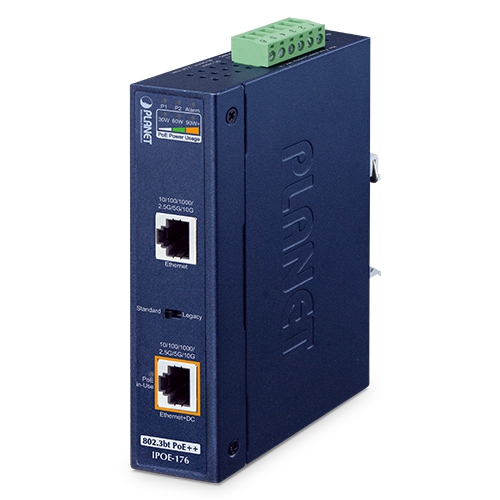

SKU: IPOE-176
| Hardware Specifications | |
|---|---|
| Interface | Input Port: 1 × RJ45 10/100/1000/2.5G/5G/10GBASE-T Data In Output Port: 1 × RJ45 10/100/1000/2.5G/5G/10GBASE-T PoE (Data + Power) Out PoE Mode Control: DIP switch for Standard / Legacy / Force modes |
| Data Rate | 10G/5G/2.5G/1G/100/10Mbps |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2 |
| Power Requirements | DC 48-54V, 2.5A max |
| Power Consumption | Max. 1.62 watts/ 5.5 BTU (Power on without any connection) Max. 98 watts/ 334.2 BTU (54V DC input, full PoE load) |
| Dimensions (W x D x H) | 32 × 87 × 135 mm |
| Weight | 454g |
| Unit Output Voltage | DC 48–54V |
| LED Indicators | System: Power 1 (Green) Power 2 (Green) Alarm (Red) PoE Port: PoE-in-Use × 1 (Amber) PoE Usage: PoE Usage × 3 (Amber, 30W / 60W / 90W) |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G:4-pair UTP Cat 6A/Cat 7 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at/bt PSE |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
| PoE Mode | Standard mode Legacy and Force modes |
| PoE Power Output Budget | 95W (IEEE 802.3bt Type 4) |
| PoE Power Output | DC 54V input: Max. 95W @1m cable Max. 71W @100m cable DC 48V input: Max. 94W @1m cable Max. 67W @100m cable Actual available power may vary depending on cable length and DC input voltage |
| No. of Devices that can be powered | 1 |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet (Type 4) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Operating Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, relative humidity, non-condensing |
