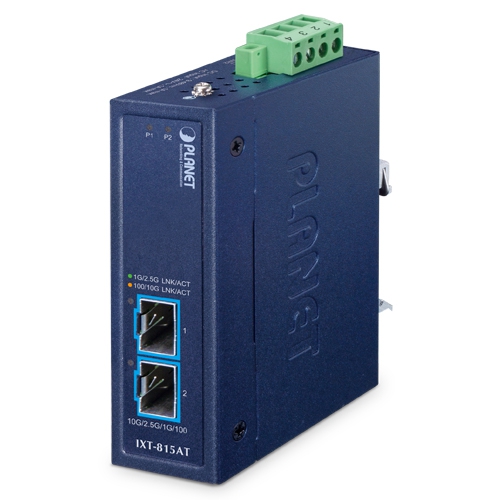

SKU: IXT-815AT
| Hardware Specifications | |
|---|---|
| SFP+ Port | Dual 10GBASE-X SFP+ interfaces Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers |
| Fiber Mode | May vary on SFP+/SFP module |
| Fiber Port Type (connector) | SFP, LC type |
| Fiber Maximum Distance | May vary on SFP module |
| Network Cables | May vary on SFP+ and SFP modules |
| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1, Pin 3/4 for Power 2 |
| Enclosure | Metal case |
| LED | System: PWR1, PWR2 (Green) SFP+ Interfaces 2.5Gbps/1Gbps LNK/ACT(Green) 10Gbps /100Mbps LNK/ACT(Amber) |
| ESD Protection | Contact ±6KV DC |
| Enclosure | IP30 type metal case |
| Installation | DIN-rail kit and wall-mount ear |
| Dimensions (WxDxH) | 30 x 70 x 104mm |
| Weight | 254g |
| Power Requirements | DC 9~48V or 24V AC |
| Power Consumption | Max. 1.17 watts / 3.99 BTU/h @9V DC input (Power on without any connection) Max. 8.46 watts / 8.46 BTU/h @9V DC input (Full loading) |
| Layer 2 Features | |
| Switch Architecture | Store-and-Forward |
| Flow Control | Half duplex: Back pressure eliminates packet loss Full duplex: IEEE 802.3x pause frame support for efficient flow control |
| Fabric | 40Gbps backbone to ensure high-speed data transmission |
| Forwarding Rate | Non-blocking, full wire-speed forwarding rate |
| MAC Address Table | 4K MAC address table, auto-aging |
| Jumbo Frame | 12K |
| VLAN Support | Transparent 802.1Q VLAN pass-through for seamless integration in tagged network environments |
| Priority Switching | 8-level QoS priority switching for traffic optimization Supports 802.1p priority for efficient traffic management |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service IEEE 802.1Q VLAN pass-through |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
