SKU: IGTP-2205AT
| Hardware Specifications | |
|---|---|
| Copper Port | 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports with PoE injector function |
| SFP Port | 2 1000BASE-SX/LX/BX SFP interfaces Compatible with 100BASE-FX SFP |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED | System: P1/P2 (Green) Fiber 100/1000BASE-X:LNK/ACT (Green) TP 10/100/1000BASE-T:LNK/ACT(Green) PoE: Power-in-use (Amber) |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 260 g |
| Power Requirements | DC 48~54V, redundant power with reverse polarity protection function (>51V DC for PoE+ output recommended) |
| Power Consumption | System ON without loading DC 48V: 1.44W/4.91BTU DC 54V: 1.62W/5.53BTU Full loading with PoE DC 48V:81.6W/ 278.43 BTU DC 54V:82.1W/ 280.14 BTU |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV DC |
| Cables | 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA / TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| PoE Power Output | 48~54V DC: 30 watts per port |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 60 watts |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Ordering Information | |
|---|---|
IGTP-2205AT |

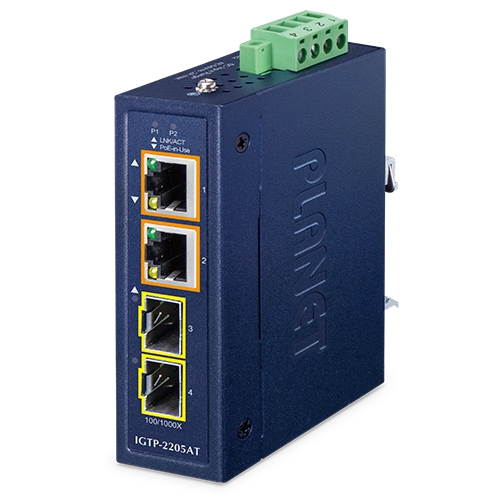

Compact Industrial 2-Port 100/1000X SFP to 2-Port 10/100/1000T 802.3at PoE+ Media Converter |
