SKU: LS250-PLUG-868M
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN |
| Frequency | LS250-PLUG-EU868 863–870 MHz LS250-PLUG-US915 |
| TX Power | LS250-PLUG-EU868 EU868 16dbm IN865 20dbm (optional)
LS250-PLUG-US915 |
| Rx Sensitivity | -136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps) -121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps) |
| Work Mode | OTAA/ABP Class C |
| Data Interfaces | |
| Operating Voltage | 100 to 240VAC, 50/60Hz |
| Physical Characteristics | |
| Dimensions (L x W x H) | 95 x 58 x 42.5 mm |
| Weight | 135g |
| Sensor Measurement Info | Current Measurement Range: 100mA to 16A Resistive load: 16A/250VAC; P:4000VA Inductive load (max.): 8A/220VAC; P:1760VA (COSφ=0.4) Rated Load: EU type: 16A/250VAC UK type: 13A/250VAC AU type: 10A/250VAC US type: 15A/125VAC Electric motor (max.): |
| Ingress Protection | IP20 |
| Operating Temperature | -20°C to 55°C |
| Relative Humidity | <90% RH (non condensing) |
| Storage Temperature | -40 °C ~ 85 °C |
| Standards Conformance | |
| Regulatory Compliance | CE RED, FCC PART 15B |
| Ordering Information | |
|---|---|
LS250-PLUG-EU868 |

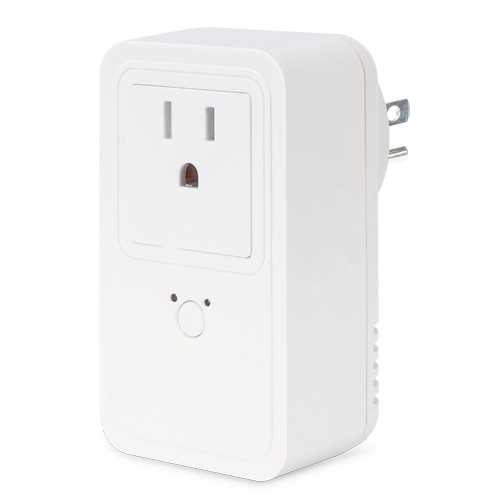

IP20 LoRaWAN Power Plug with Power Meter (EU868 Sub 1G) |
LS250-PLUG-US915 |
IP20 LoRaWAN Power Plug with Power Meter (US915 Sub 1G) |
