SKU: IPOE-173S
| Hardware Specifications | |
|---|---|
| Interface | PoE Input Port 1 10/100/1000 BASE-T RJ45 Data Output Port 1 10/100/1000 BASE-T RJ45 DC Out Plug Connector 1 removable 4-pin terminal block DIP Switch 12V/19V/24V DC output |
| LED Indicators | PoE Input: 30W (Green) 60W (Green) 90W (Green) DC Voltage: 12V (Green) 19V (Green) 24V (Green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 32 x 87.8 x 135 mm |
| Weight | 440g |
| Installation | DIN-rail/wall mountable |
| ESD Protection | 4KV |
| EFT Protection | 4KV |
| Enclosure | IP30 metal case |
| Power Requirements | 4-pair 802.3at PoE+ and 802.3bt PoE++ PoE DC 48 ~ 54V |
| Power Consumption | System on with PoE input 5.3 watts Full loading with maximum 12V DC, 6.8A output 75.83 watts |
| Power Output | 802.3 bt type 4 PoE++ input 12V DC, 6.8A (max.) 19V DC, 4.3A (max.) 24V DC, 3.3A (max.) |
| Network Cable | 802.3 bt PoE++ input (60W+) 4-pair UTP Cat. 5e, 6, up to 100m (328ft) 802.3at PoE+ input (30W) 2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft) |
| Power over Ethernet | |
| PoE Standard | 802.3 bt PoE++ 4-pair 802.3at PoE+ |
| Power Output | DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type | End-span + Mid-span End-span Mid-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Type 4 |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | -40~ 75 degrees C |
| Storage Temperature | -40~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
IPOE-173S |

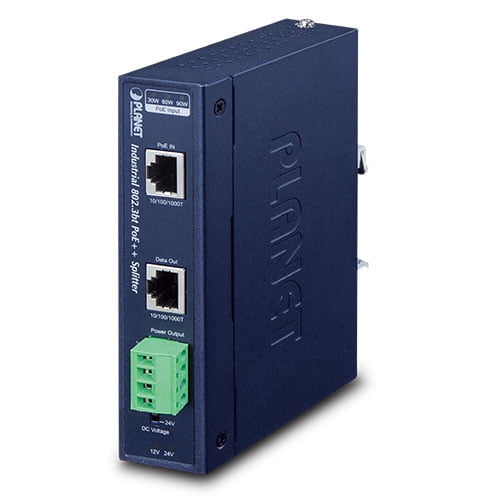

Industrial Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter |
