SKU: LN1130
| Wireless Transmission | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Technology | LoRaWAN | ||||||||||||||
| Antenna Connector | 1 × 50 Ω SMA Connector (Center Pin: SMA Female) | ||||||||||||||
| Frequency | IN865, EU868, RU864, US915, AU915, KR920, AS923 | ||||||||||||||
| Work Mode | OTAA/ABP Class A/B/C | ||||||||||||||
| Data Interfaces | |||||||||||||||
| Interface Type | 6-pin removable terminal block | ||||||||||||||
| Serial Port |
|
||||||||||||||
| Others | |||||||||||||||
| Configuration Port | 1 × Micro USB | ||||||||||||||
| LED Indicators | 1 × PWR, 1 × LoRa | ||||||||||||||
| Built-in Sensor | Temperature sensor | ||||||||||||||
| Physical Characteristics | |||||||||||||||
| Power Connector | 2-pin removable terminal block | ||||||||||||||
| Power Supply | 9 ~ 48V DC/ 24V AC | ||||||||||||||
| Ingress Protection | IP30 | ||||||||||||||
| Operating Temperature | -40°C to +75°C | ||||||||||||||
| Relative Humidity | 5% to 95% (non-condensing) | ||||||||||||||
| Dimensions | 30 x 70 x 104 mm | ||||||||||||||
| Weight | 218 g | ||||||||||||||
| Installation | DIN-rail or wall mounting | ||||||||||||||
| Standards Conformance | |||||||||||||||
| Regulatory Compliance | CE, FCC | ||||||||||||||
| Ordering Information | |
|---|---|
LN1130 |

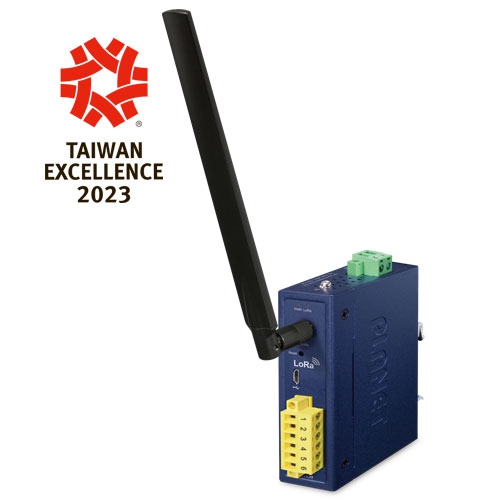

Industrial IP30 LoRa Node Controller (Modbus RS232, RS485, EU868/US915 Sub 1G) |
| Accessories | |
|---|---|
PWR-240-48 |
240W 48V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C) |
PWR-480-48 |
480W 48V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C) |
