SKU: IPOE-162S
| Hardware Specifications | |
|---|---|
| Interface | “PoE (Power + Data)” Input Port : 1 x RJ-45 10/100/1000Base-T “Data” Out Port: 1 x RJ-45 10/100/1000Base-T DC Out Plug Connector: 1 removable 4-Pin terminal block |
| LED Indicator | System: Power Ready x 1 (Green) |
| Network Cable | 10/100/1000Base-T: 4-Pair UTP Cat. 5, 5e, 6 Distance up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Data Rate | 10/100/1000Mbps (vary on Ethernet device attached) |
| DIP Switch | 12V DC / 24V DC output voltage |
| Power Input | 802.3at PoE 48~56V DC |
| Power Output | 12V / 24V DC, max 2A (adjustable) |
| Dimensions (W x D x H) | 135 x 87.8 x 32 mm |
| Weight | 421g |
| Enclosure | IP30 metal case |
| Installation | DIN rail kit and wall mount ear |
| ESD / EFT Protection | 6KV DC |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at High Power over Ethernet |
| Number of devices that can be powered | 1 or 2 (Vary on device’s power requirement; DC1 + DC2 cannot be over 25 watts.) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free Fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
IPOE-162S |

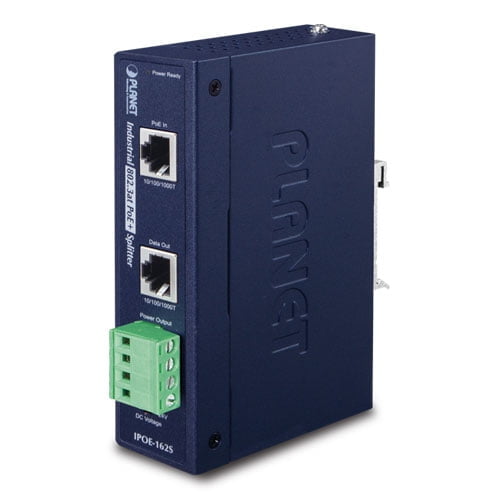

Industrial IEEE 802.3at Gigabit High Power over Ethernet Splitter |
