SKU: IGT-815AT
| Hardware Specifications | |
|---|---|
| Copper Port | 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance. Auto-negotiation, auto MDI/MDI-X |
| SFP Port | 1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED | System: Power (Green) Fiber 100/1000BASE-X: LNK/ACT (Green) TP 10/100/1000BASE-T: LNK/ACT(Green), 1000 LNK/ACT(Amber) |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 221g |
| Power Requirements | DC 9~48V, supports reverse polarity protection AC 24V |
| Power Consumption | System ON without loading DC 9V: 0.55W/1.87BTU DC 12V: 0.54W/1.84BTU DC 24V: 0.52W/1.77BTU DC 36V: 0.5W/1.7BTU DC 48V: 0.52W/1.77BTU AC 24V: 0.5W/1.7BTU Full loading DC 9V: 1.76W/6BTU DC 12V: 1.77W/6BTU DC 24V: 1.63W/5.56BTU DC 36V: 1.65W/5.62BTU DC 48V: 1.68W/5.73BTU AC 24V: 2.8W/9.5BTU |
| DIP Switch | Off: LFP (Link Fault Passthrough) disable On: LFP (Link Fault Passthrough) enable FEF (Far End Fault) works with LFP to prevent data loss The DIP switch is turned off by default. |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount ear |
| ESD Protection | 6KV DC |
| Cables | 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA / TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Ordering Information | |
|---|---|
IGT-815AT |

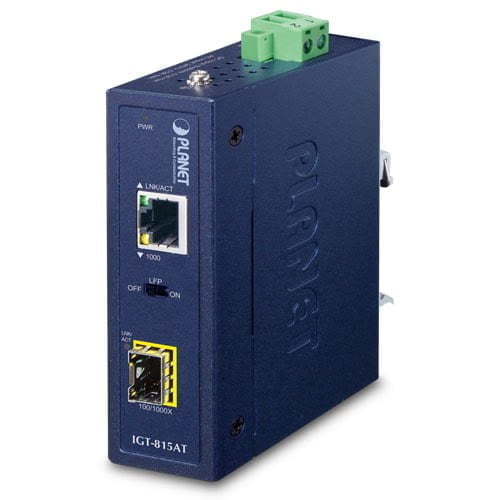

Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T Media Converter |
