SKU: ISW-808PT-M12A
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 x M12, 4-pin D-coded female connector 10/100BASE-TX auto-MDI/MDI-X |
| IEEE 802.3at PoE+ Ports | 8, port 1 to port 8 |
| Power Connector | 1 x M23, 5-pin A-coded male connector |
| Enclosure | IP50 metal case |
| Dimensions (W x D x H) | 132 x 47 x 160mm |
| Weight | 952g |
| Installation | Wall-mount and DIN-rail kit |
| Power requirements | Dual 12~54V DC |
| Power Consumption | DC 12V:75.6 watts/257 BTU DC 24V:129.3 watts/441 BTU DC 48V:190.1 watts/648 BTU DC 54V:191.7 watts/654 BTU |
| ESD Protection | 6KV DC |
| Surge Protection | 6KV DC |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps |
| Maximum Transmit Unit | 1536 bytes |
| Network Cables | 10BASE-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) 100BASE-TX: 2-pair UTP Cat.5, 5e, 6 up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, max.) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus / PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | 54V DC per port with maximum of 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Budget | 180 watts@48-56V DC input 120 watts@24~48V DC input 60 watts@12~23V DC input |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A CE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet plus |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Railway Traffic | EN50155 |
| Environments | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 80 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
ISW-808PT-M12A |

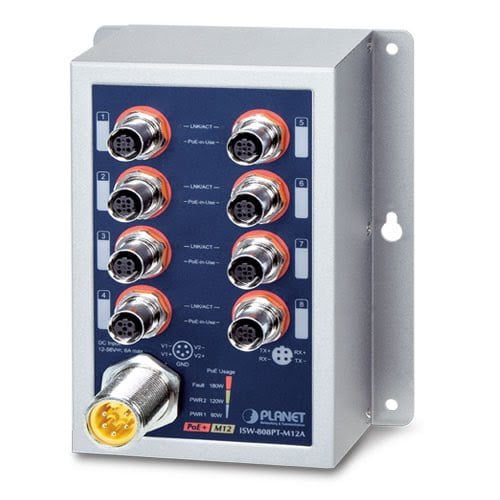

Industrial 8-Port 10/100TX M12 802.3at PoE+ Switch (-40~75 degrees C) |
| Accessories | |
|---|---|
CB-M23F5F-120 |
5-pin M23 Female to Bare End Power Cable (1.2 meters) |
CB-M12D4MRJ-120 |
4-pin D-coded M12 Male to RJ45 Ethernet Cable (1.2 meters) |
CB-M12D4MRJ-1000 |
4-pin D-coded M12 Male to RJ45 Ethernet Cable (10 meters) |
CB-M12D4MD4F-1000 |
4-pin D-coded M12 Male to D-coded M12 Female Ethernet Cable (10 meters) |
