SKU: ISW-800T
| Hardware Specifications | |
|---|---|
| Hardware Version | 2 |
| Copper Ports | 8 x 10/100BASE-TX RJ45 TP auto-MDI/MDI-X, auto negotiation |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A@DC 24V |
| LED | 3 x LED for system and power: Green: DC Power 1 Green: DC Power 2 Red: Power Alarm 1 x LED for each copper port: Green: 10/100Mbps LNK/ACT |
| ESD Protection | 6KV |
| EFT Protection | 6KV |
| Power Requirements | 12~48V DC, redundant power with reverse polarity protection, 24V AC power support |
| Power Consumption / Dissipation | Max. 1.1 watts/3.75BTU (Power on without any connection) Max. 2.5 watts/8.53BTU (Ethernet full loading) |
| Installation | DIN-rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 41 x 70 x 115mm |
| Weight | 300g |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 1K entries |
| Shared Data Buffer | 448K bits |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps@64bytes |
| Network Cables | 10/100BASE-TX Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service PROFINET Traffic Pass-through with QoS |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~95%, Storage: 5~95% (non-condensing) |
| Ordering Information | |
|---|---|
ISW-800T |

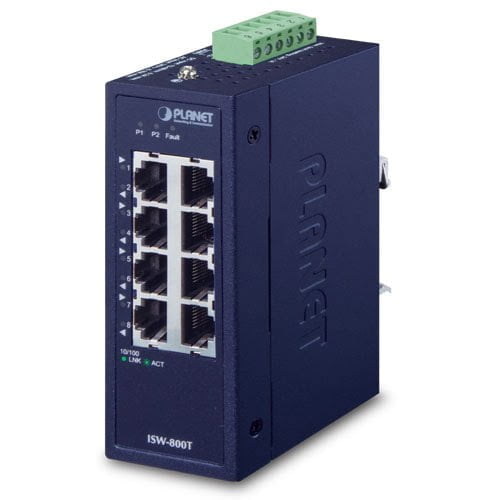

Compact Industrial 8-port 10/100TX Ethernet Switch |
