SKU: IFGS-1022HPT
| Hardware Specifications | |
|---|---|
| Fast Ethernet Copper Ports | Eight 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Ports 1 to 8) |
| Gigabit Ethernet Copper Ports | Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Ports 9 to 10) |
| SFP/mini-GBIC Slots | Two 1000BASE-SX/LX/BX SFP interfaces (shared with Ports 9 to 10) |
| PoE Injector Port | Eight ports with 802.3af/802.3at PoE+ injector function (Ports 1 to 8) |
| DIP Switch (Port-1 to Port-8) | Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps |
| Connector | Removable 6-pin terminal block ■ Pin 1/2 for Power 1 ■ Pin 3/4 for power fault alarm ■ Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
| Power Requirements | 48~54V DC, 5.5A (max.) (>51V DC for PoE+ output recommended) |
| Power Consumption/ Dissipation | 4.3 watts, 14.6BTU (Standby without PoE function) at DC 54V power input 256 watts, 873BTU (Full loading with PoE function) at DC 54V power input |
| Dimensions (W x D x H) | 66 x 107 x 152 mm |
| Weight | 829g |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| LED | 3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Red: Power Fault Alarm 2 x LED for PoE Copper Port (Port-1~Port-8): ■ Green: LNK/ACT (10/100Mbps) ■ Amber: PoE-In-Use 2 x LED for 10/100/1000T Copper Port (Port-9~Port-10): ■ Green: LNK/ACT ■ Amber: 1000 2 x LED for per mini-GBIC interface (Port-9~Port-10) ■ Green: LNK/ACT ■ Amber: 1000 |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 5.6Gbps/non-blocking |
| Switch Throughput@64 bytes | 4.1Mpps @64 bytes |
| MAC Address Table | 16K entries |
| Shared Data Buffer | 4Mb SRAM |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10 Kbytes |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | IEEE 802.3af Standard – Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard – Per port 51V~54V DC (depending on the power supply), max. 30 watts |
| PoE Power Budget | Dual power input: maximum 240W (depending on power input) |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 8 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
IFGS-1022HPT |

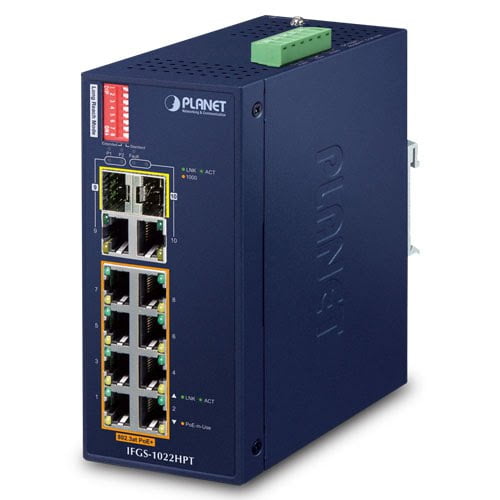

Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/ SFP Combo Ethernet Switch (-40~75 degrees C) |
