SKU: WGS-803
| Hardware Specifications | |
|---|---|
| Network Connector | 8-port RJ45 for 10/100/1000BASE-T |
| Switch Architecture | Store and forward |
| MAC Address Table | 8K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | ■ Power LED: – Power (Green) ■ 10/100/1000BASE-T Port: – 1000 (Green) – LNK/ACT (Green) |
| Connector | ■ Removable 3-pin terminal block for power input – Pin 1/2 for DC Power – Pin 3 for earth ground ■ DC power jack with 2.0mm central pole |
| Power Requirements | 12~48V DC, 0.5A (max.) 24V AC, 0.5A(max.) |
| Power Consumption | 6 watts / 20BTU |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weight | 498g |
| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Standard Conformance | |
| Standard Compliance | IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Accessories | |
| Standard Accessories | ■ User’s manual x 1 ■ Magnetic kit x 1 ■ DIN-rail kit x 1 ■ Wall-mounted kit x 1 ■ Dust cap x 8 ■ 3-pin terminal block connector x 1 |
| Ordering Information | |
|---|---|
WGS-803 |

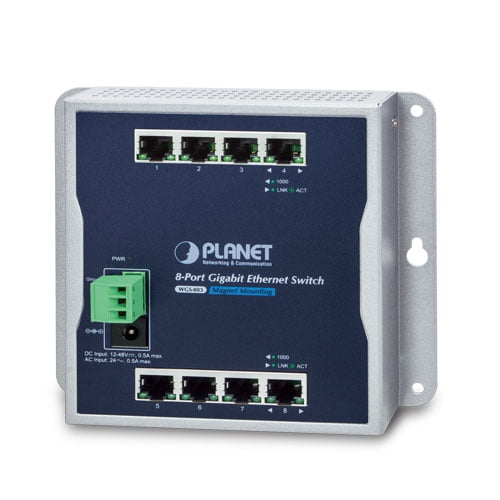

8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch |
| Accessories | |
|---|---|
PWR-40-24 |
40W 24V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C) |
