SKU: IGS-1000-8T4X
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| SFP Slots | 4 10GBASE-X SFP+ interfaces(Ports 9 to 12) Backward compatible with 1000BASE-X SFP and 2500BASE-X SFP |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2 |
| Power Requirements | 9~48V DC, 4A max. / 24V AC Redundant power with reverse polarity protection |
| Power Consumption | Max. 14.73 watts/50.2BTU |
| Dimensions (W x D x H) | 76 x 135 x 152 mm |
| Weight | 1211g |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV |
| LED Indicators | System: P1, P2 (Green), Alarm (Red) 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 8): 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Amber) 1G/2.5G/10Gbps SFP+ Interfaces (Port 9 to Port 12): 1G/2.5G LNK/ACT (Green) 10G LNK/ACT (Amber) |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 96Gbps |
| Throughput (packet per second) | 71.43Mpps@64bytes |
| Address Table | 16K entries |
| Buffer Memory | 12M bits on-chip buffer memory |
| Jumbo Frame | 12Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Ordering Information | |
|---|---|
IGS-1000-8T4X |

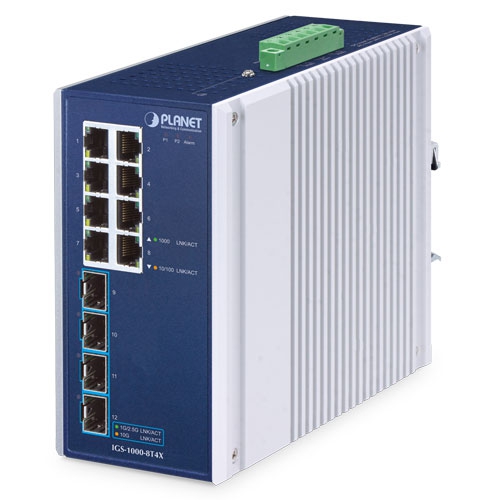

Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch |
| Accessories | |
|---|---|
PWR-240-48 |
48V, 240W Din-rail Power Supply (NDR-240-48, adjustable 48-56V DC Output) |
PWR-480-48 |
48V, 480W Din-rail Power Supply (NDR-480-48, adjustable 48-56V DC Output) |
