SKU: IVR-100
| Hardware | |
|---|---|
| Ethernet | 5 10/100/1000BASE-T RJ45 Ethernet ports including
|
| USB Port | 1 USB 3.0 port for system configuration backup and firmware upgrade |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Enclosure | IP30 metal case |
| LED Indicators | Power1/Power2 (Green) Fault (Red) |
| Installation | DIN-rail, wall-mount or side wall-mount design |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for power fault alarm Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
| Power Requirements | 9-48V DC, 1A max. |
| Power Consumption | 9W max. |
| Weight | 0.53kg |
| Dimensions (W x D x H) | 50 x 87.8 x 135 mm |
| ESD Protection | 6KV DC |
| Software | |
| Management | Web browser |
| Operation Mode | Routing mode |
| Routing Protocol | Static route: 32 Dynamic route (RIPv1/v2): 4096 |
| NAT Throughput | Max. 900Mbps |
| Firewall Security | Stateful packet inspection (SPI) Blocks DoS/DDoS attack |
| Outbound Load Balancing | Supported algorithms: Weight |
| Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, SNMP(v1/v2C/v3), PPPoE, SNMP, QoS, VLAN, IGMP Proxy |
| Content Filtering | MAC filtering IP filtering Web filtering |
| Log | System operation log Event message logging to remote syslog server |
| Others | Outbound load balancing Failover for dual-WAN Port forwarding DMZ Cybersecurity Dashboard Setup wizard Auto reboot PLANET Smart Discovery utility/UNI-NMS supported |
| VPN | |
| VPN Function | IPSec (Host to Host)/GRE/PPTP server/L2TP/SSL (Open VPN) |
| VPN Tunnels | Max. 60 |
| VPN Throughput | Max. 100Mbps |
| VPN concurrent users | Max. 60 |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.1Q VLAN tagging RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP |
| Environment Specifications | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Standard Accessories | |
| Packet Contents | IVR-100 x 1 Quick Installation Guide x 1 Wall-mount Kit x 1 Dust Cap x 5 |
| Ordering Information | |
|---|---|
IVR-100 |

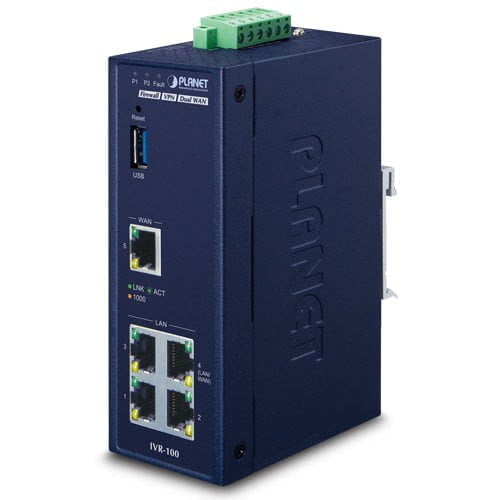

Industrial 5-Port 10/100/1000T VPN Security Gateway |
