SKU: IECJ-400
| Communication Interface | |
|---|---|
| Copper | Port： 4 x 100BASE-TX RJ45 port (1 IN, 3 OUT) Distance between Stations： max. 100 m (100BASE-TX) Data Transfer Medium： Ethernet/EtherCAT cable (min. cat5), shielded |
| EtherCAT | |
| Protocol | EtherCAT |
| Power | |
| Input Voltage Range | Dual 9~48V DC Redundant power with reverse polarity protection |
| Power Consumption | 2.44W max. |
| Mechanical | |
| Dimensions (W x D x H) | 32 x 87.8 x 135mm |
| Weight | 383 g |
| Installation | DIN-rail and wall mounting |
| Case Material | IP30 metal |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Storage Temperature | -40~85 degrees C |
| Relative Humidity | 5~95% (non-condensing) |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Ordering Information | |
|---|---|
IECJ-400 |

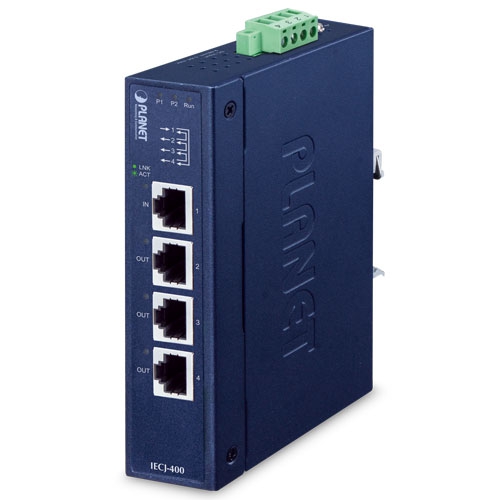

Industrial 4-Port EtherCAT Junction Slave |
| Accessories | |
|---|---|
PWR-240-48 |
240W 48V DC Single Output Industrial DIN-rail Power Supply |
PWR-480-48 |
480W 48V DC Single Output Industrial DIN-rail Power Supply |
