SKU: IGT-1205AT
| Hardware Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Copper Interface | 1 x 10/100/1000BASE-T RJ45 | ||||||||
| Fiber Optic Interfaces | 2 x 100/1G/2.5GBASE-X SFP interfaces (Port-1 and Port-2) Supports auto detection |
||||||||
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
||||||||
| LED | System and Power: Green: DC Power 1 Green: DC Power 2 Red: Alarm Per Copper Port (Port-3~Port-4): Green: 1G LNK/ACT Amber:100 LNK/ACT SFP interface (Port-1~ Port-2) Green + Amber: 2.5G LNK/ACT Green: 1G LNK/ACT Amber:100 LNK/ACT |
||||||||
| DIP Switch |
|
||||||||
| Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
||||||||
| Power Requirements | DC 12~48V or AC 24V Redundant power with reverse polarity protection |
||||||||
| Power Consumption / Dissipation | 4.8 watts/16BTU | ||||||||
| Dimensions (W x D x H) | 32 x 87.8 x 135mm | ||||||||
| Weight | 412g | ||||||||
| Enclosure | IP30 type metal case | ||||||||
| Installation | DIN-rail kit and wall-mount ear | ||||||||
| ESD Protection | 6KV DC | ||||||||
| Converter Specifications | |||||||||
| Processing Scheme | Store-and-Forward | ||||||||
| Fabric | 12Gbps | ||||||||
| Throughput (packet per second) | 8.93Mpps@64bytes | ||||||||
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
||||||||
| Address Table | 4K entries | ||||||||
| Jumbo Frame | 9216bytes | ||||||||
| Standards Conformance | |||||||||
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service |
||||||||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||||||||
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27(shock) IEC60068-2-6 (vibration) |
||||||||
| Environment | |||||||||
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
||||||||
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
||||||||
| Ordering Information | |
|---|---|
IGT-1205AT |

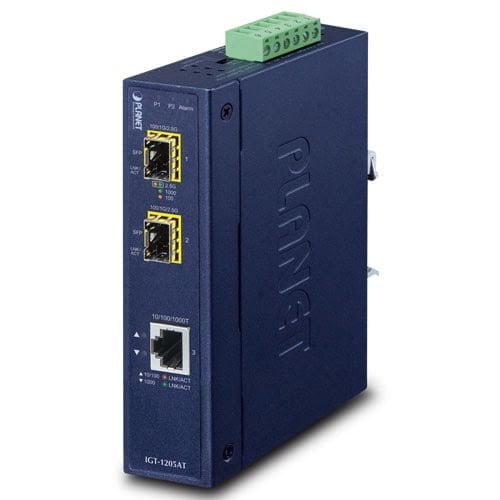

Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter |
