SKU: POE-162S
| Hardware Specifications | |
|---|---|
| Hardware Version | 2 |
| Interface | “Data” Output Port: 1 x RJ45 STP “PoE (Data + Power)” Input Port: 1 x RJ45 STP DC Out Plug Connector: 1 |
| LED Indicator | System: PoE in Use x 1 (Green) |
| Network Cable | UTP Cat. 5/5e/6, up to 100m (328ft) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 94.75 x 72.38 x 31 mm |
| Weight | 108g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Gigabit Power over Ethernet / PD |
| PoE Power Input | IEEE 802.3at 52~56V DC |
| DIP Switch | 12V DC/24V DC output voltage |
| Number of clients device can be powered | 1 |
| Standards Conformance | |
| IEEE 802.3 10BASE-T Ethernet | ■ |
| IEEE 802.3u 100BASE-TX Fast Ethernet | ■ |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | ■ |
| IEEE 802.3af Power over Ethernet | ■ |
| IEEE 802.3at Power over Ethernet Plus | ■ |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
POE-162S |

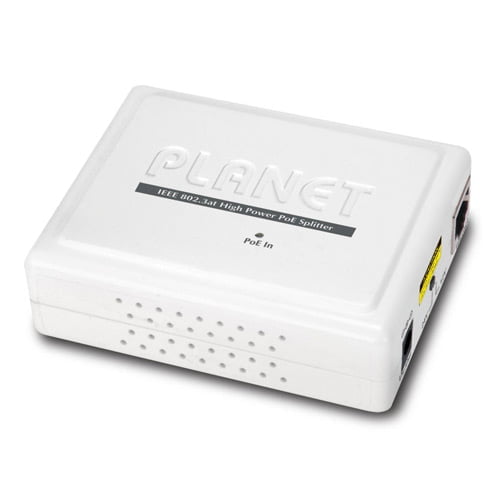

IEEE 802.3at Gigabit Power over Ethernet Plus Splitter with 12V/24VDC output (10/100/1000Mbps) |
