SKU: POE-161S
| Hardware Specification | |
|---|---|
| Hardware Version | 3 |
| Interface | „Data” Out Port：1 x RJ-45 STP „PoE (Power + Data)” Input Port：1 x RJ-45 STP DC Out Plug Connector：1 |
| LED Indicator | System: PoE in Use x 1 (Green) |
| Network Cable | UTP Cat. 5/5e/6, up to 100m (328ft) |
| Data Rate | 10/100/1000Mbps |
| Dimension (W x D x H) | 94.75 x 72.38 x 31 mm |
| Weight | 108g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus / PD |
| PoE Power Input | IEEE 802.3at 52~56V DC |
| DIP Switch | 5V DC/12V DC output voltage |
| Number of devices that can be powered | 1 |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
POE-161S |

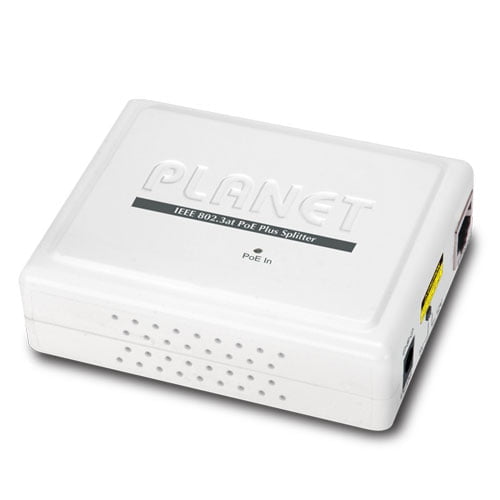

IEEE 802.3at Gigabit Power over Ethernet Plus Splitter with 5V/12VDC output (10/100/1000Mbps) |
