SKU: IHD-210PR
| Hardware Specifications | |
|---|---|
| Network Interface | RJ45 port (10/100BASE-TX Ethernet) x 1 |
| Serial Interface | DB-9 female connector for RS232 x 1 |
| LED | Numerical LED display |
| Buttons | Reset button x 1 |
| Video Out Interface | HDMI A Type female connector x 1 |
| IR | 3.5mm jack for IR receiver cable |
| Channel Switching | DIP (64 channels) |
| Power Supply | IEEE 802.3af/at PoE+ 5V DC, 2A |
| Power Consumption | 7W (each unit) |
| Dimensions (W x D x H) | 130 x 82 x 30.25 mm |
| Weight | 290 g |
| Video and Audio | |
| Video Out Resolution | 1080p @60/50 Hz 1080p @30/25 Hz 1080i @ 60/50 Hz 720p @ 60/50 Hz 480p @ 60/50 Hz 480i @ 60/50 Hz |
| Compression | H.264 format for video encoder/decoder. MPEG 1 Layer II format for audio encoder/decoder |
| Audio | 2-ch uncompressed audio |
| General | |
| Management Interfaces | Search Tool |
| System Expandability (max.) | 64 groups |
| Resolution Identification | EDID (Extended Display Identification Data) |
| Security | HDCP compliant |
| Media Stream Bandwidth (max.) | 15Mbps |
| Maximum Distance (between unit and PoE switch) | 100 meters (330 feet) over CAT5e/6 cable |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3af/at PoE+ |
| HDMI Interface Compliance | HDMI 1.4a |
| Protocol | TCP, UDP, RTSP, RTP, DHCP, IGMP Snooping, Multicast, IPv4 |
| Cabling | Cat5e/6 UTP cable |
| Environment Specifications | |
| Operating | Temperature: 0~55 degrees C Relative Humidity: 5~90% (non-condensing) |
| Storage | Temperature: -10~60 degrees C Relative Humidity: 5~90% (non-condensing) |
| Emission | FCC, CE |
| Standard Accessories | |
| Packet Contents | Media Extender x 1 Quick Installation Guide x 1 IR Receiver Cable x 1 |
| Ordering Information | |
|---|---|
IHD-210PR |

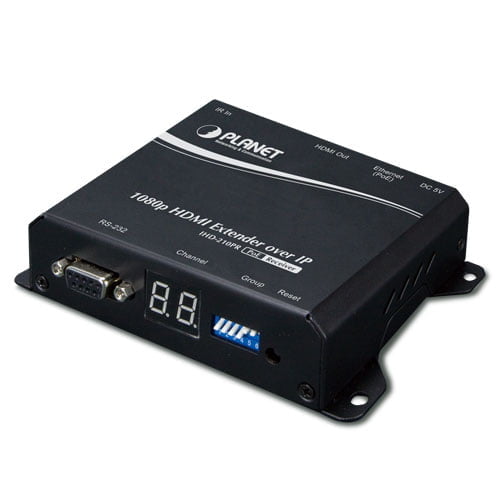

High Definition HDMI Extender Receiver over IP with PoE |
