SKU: ICF-2000
| Interface | |
|---|---|
| Lines (Direct Numbers) | 20 SIP Lines |
| Display and Indicator | 112 one-touch DSS keys on 7-inch (1024 x 600) color touch screen 4 points multi-touch surface Screensaver and wallpaper LED for call and message waiting indication Intuitive user interface with icons and soft keys Multilingual user interface Caller ID with name, number and photo |
| Feature Keys | 5 keys, including 1 x Home key 1 x Return key 2 x Volume Control keys – Up and Down 1 x Hands-free key |
| Network Interfaces | Dual-port Gigabit Ethernet: Network x 1 (802.3at PoE enabled) PC x 1 (Bridged Network) Built-in Wi-Fi (2.4GHz/5GHz) |
| Camera | Pixels: 5 megapixels Video Codec: H.264 Video Call Resolution: 1080p@30fps |
| Connectors | RJ9 Port x 2: Handset x 1, Headset x 1 Safety keyhole x 1 |
| Android Bundled Applications | |
| Operating System | Android 9.0 OS with higher security and better compatibility Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music Third-party Android application support |
| Network and Provisioning | |
| Network | IP Mode: IPv4 IP Configuration: Static / DHCP Network Access Control: 802.1x VPN: OpenVPN (Requires third-party app support) VLAN, LLDP, CDP, QoS |
| Protocols | SIP2.0 over UDP/TCP/TLS, DNS A/SRV/NAPTR, RTP/RTCP/SRTP, STUN, DHCP, CDP, LLDP, 802.1x, OpenVPN (Requires third-party app support), SNTP, FTP/TFTP, HTTP/HTTPS, TR-069 |
| Deployment & Maintenance | Auto-provisioning via FTP, TFTP, HTTP/HTTPS, DHCP OPT66, SIP PNP, TR-069 Web management portal, Telnet Encrypted configuration files download with AES Web upgrade, factory reset data The third-party communication app |
| Features | |
| Audio Features | HD voice microphone/speaker (handset/hands-free, 0 ~ 7KHz frequency response) Wideband ADC/DAC 16KHz sampling Narrowband codec: G.711a/u, G.729, G.729A, G.729B, G.729AB, iLBC Wideband codec: G.722, Opus Full-duplex acoustic echo canceller (AEC) Noise reduction (NR) Packet loss concealment (PLC) Dynamic adaptive jitter buffer DTMF: In-band, out-of-band, DTMF-relay (RFC2833), SIP Info |
| Video Features | Video decoding: H.264 Video call resolution: QVGA/CIF/VGA/4CIF/720P/1080P Image format: JPEG/PNG/BMP Video format: MP4 Bandwidth selection: 64kbps~4Mbps Frame rate selection: 5~30fps Video from remote site can be displayed in full screen 3-way video conferencing Self-view (local video preview) Built-in camera: 5 megapixels, adjustable video angle. |
| Phone Features | Local Phonebook (2000 entries) Remote Phonebook (XML/LDAP, 2000 entries) Intelligent Search for Contacts and Call Log Call logs (In/out/missed, 1000 entries) Black/White List Call Filter Screen saver Message Waiting Indication (MWI) Programmable DSS/Soft keys Network Time Synchronization Built-in 2.4GHz/5GHz dual-band Wi-Fi Support Recording Action URL / Active URI UaCSTA Audio/Video Recording SIP Hotspot Group Broadcasting Action Plan Group listening |
| Call Features | Call out / Answer / Reject Mute / Unmute (Microphone) Call Hold / Resume Call Waiting Intercom Caller ID Display Speed Dial Anonymous Call (Hide Caller ID) Call Forwarding (Always/Busy/No Answer) Call Transfer (Attended/Unattended) Call Parking/Pick-up (Depending on server) Redial Do-Not-Disturb Auto-Answering Voice Message (On IP PBX or SIP server) 3-party video/audio mixed conferencing 10-party audio conferencing Hot Line Hot desking BLF (Busy Lamp Field) |
| Environment | |
| Power Requirements | IEEE 802.3af/at PoE, 48~54V DC (Network port) 12V DC (optional external power supply) |
| Power Consumption | PoE: 3.52~10.76W Adapter: 2.38~8.6W |
| Operating Temperature | 0 ~ 45 degrees C |
| Operating Humidity | 10 ~ 95% (non-condensing) |
| Weight | 760 g |
| Dimensions (W x D x H) | Desktop Stand(Angle 1): 265×172.1×145.2mm Desktop Stand(Angle 2): 265×161.7×154.5mm Wall Mounted: 265×78.6x184mm Without Stand : 264.97 x 70.58 x 216.71mm |
| Emission | CE, FCC, RoHS |
| Ordering Information | |
|---|---|
ICF-2000 |

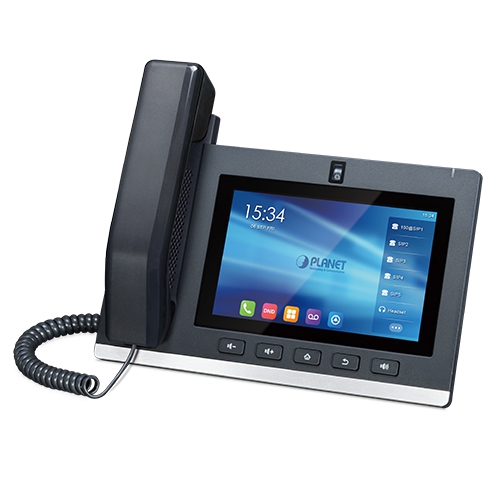

7” Smart Media Android SIP Conference Phone with Full HD Camera and Touch Screen |
