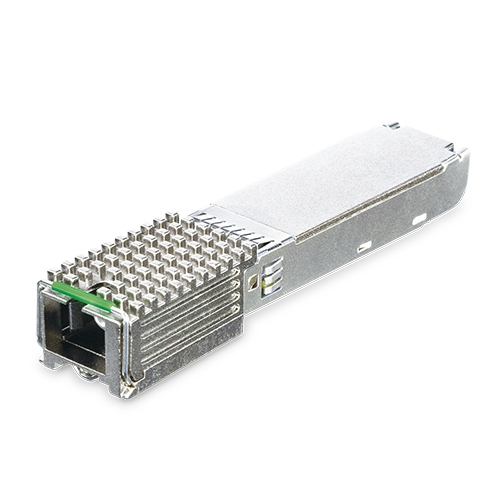

SKU: GPN-SFP
| Hardware Specifications | |
|---|---|
| UNI | 2.5G and 1G Ethernet UNI modes |
| Transmission Speed | GPON: Downstream: 2.5 Gbps/Upstream: 1.25 Gbps |
| Port Type | SC/APC connector |
| Fiber Maximum Distance | 20km |
| Dimensions (W x D x H) | 75 x 13.55 x 14 mm |
| Weight | 31g |
| Power Input | SFP feed 3.3V |
| Power Consumption | Less than 2.5W |
| Optical Receive Sensitivity | -28 dBm |
| Optical TX Power | 0~5 dBm |
| Functions | |
| Multicast | Internet Group Management Protocol (IGMP) IGMP snooping CTC defined dynamic multicast MLD snooping |
| QoS | Back pressure flow control (half duplex) IEEE 802.3x flow control (full duplex) Head of Line (HoL) mechanism IEEE 802.1p, CoS 4 priority queues per port WR, SP and FIFO Rate limit |
| Reliability | Loop detect Dying-Gasp |
| Security | Limitation to the MAC addresses on the port (1K) |
| Heat Dissipation | Supports 24/7 continuous operation; the device can operate continuously without performance degradation due to heat. |
| Management | Received Signal Strength Indication (RSSI) Multiple Source Agreement (MSA) Full Service Access Network (FSAN) Dying gasp notification ONU Management and Control Interface (OMCI) specification |
| Standards Conformance | |
| Laser Classification | IEC60825 Class 1 Laser Product |
| Standards Compliance | GPON network Class B+ IEEE 802.3x flow control and back pressure IEEE 802.1Q, VLAN IEEE 802.1p Class of Service ITU-T G.984/G.988 GBT33845-2017, YD/T 1475-2006 |
| Environment | |
| Operating | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 80% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 0 ~ 95% (non-condensing) |
