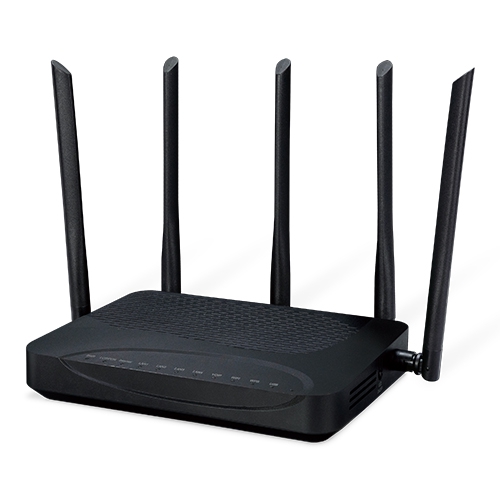

SKU: GPN-400AXV
| Hardware Specifications | |
|---|---|
| UNI port | 4 x 10/100/1000BASE-T RJ45 copper Wi-Fi 6 external 5 antennas (2.4GHz x 2, 5GHz x 3) 1 x USB 2.0 host port 1 x RJ11 FXS port |
| PON port | Transmission rate: 2.5Gbps downlink / 1.25Gbps uplink Network Coverage Radius: 20 kilometers Receiver Sensitivity: ≤-28dBm Transmit Optical Power: 0.5~5dBm Optical interface type: SC/UPC |
| Button | 1 x power ON/OFF button 1 x reset button (Press for about 15 seconds to reset the device to factory default.) 1 x WLAN enable/disable button 1 x WPS enable/disable button 1 x LED on/off button |
| Thermal Fan | Fanless |
| LED Indicators | PWR (Green) LOS/PON (Red)/(Green) Internet (Green) LAN1-LAN4 (Green) VoIP (Green) Wi-Fi (Green) WPS (Green) USB (Green) |
| Installation | Desktop installation or wall mounting |
| Power Requirements | 12V DC, 1.5A max. |
| Power Consumption | 18W max. |
| Weight | 500g |
| Enclosure | Plastic |
| Wi-Fi | 802.11b/g/n/ac/ax MIMO, with a maximum rate of 3000Mbps. multiple SSIDs and SSID encryption |
| Dimensions (WxDxH) | 244.3 x 162.15 x 193 mm (including antennas) |
| Heat dissipation | Extended use (24 hours) does not result in performance degradation or damage due to device overheating or deformation. |
| Wireless Interface Specifications | |
| Standard | IEEE 802.11ax 5GHz IEEE 802.11ax 2.4GHz IEEE 802.11a/b/g/n/ac compatible |
| Frequency Band | Simultaneous 2.4GHz and 5GHz |
| Modulation Type | 802.11ax: OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM) 802.11n/g/a: OFDM 802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Data Transmission Rates | 2.4GHz up to 574Mbps 5GHz up to 2402Mbps @ 160MHz) |
| Channel | 2.4GHz: FCC (America): 2.412–2.462GHz (11 Channels) ETSI (Europe): 2.4122.472GHz (13 Channels) 5.180~5.825GHz (up to 24 channels, depending on country) |
| Channel Width | 802.11ax: 20/40/80/160MHz |
| Max. RF Power / EIRP | 2.4GHz: < 20dBm 5GHz: < 23dBm (varies by region) |
| Wireless Management Features | |
| Encryption Security | 64/128-bit WEP, WPA, WPA2-PSK, WPA3-SAE |
| Wireless Security | SSID broadcast enable/disable Wireless MAC address filtering WPS (Wi-Fi Protected Setup) support Client isolation |
| Wireless Advanced | Transmit power adjustment Beacon interval configuration WMM (Wi-Fi Multimedia) support Band steering (2.4GHz/5GHz auto-switch) Wi-Fi schedule |
| Max. Supported Clients | Up to 128 wireless clients |
| Router Features | |
| Data Forwarding | Routing Mode, Bridging Mode, and Routing + Bridging Hybrid Mode |
| DNS | DNS Relay |
| DHCP | DHCP server |
| VLAN | Port-based VLAN IEEE 802.1Q VLAN |
| Multicast | Supports IGMP Snooping Supports CTC-defined dynamic multicast Supports MLD Snooping Supports Full-Routing Multicast |
| QoS | Backpressure Flow Control (Half-Duplex) IEEE 802.3x Flow Control (Full-Duplex) Preventing Head-of-Line Blocking IEEE 802.1p, CoS 8 Priority Queues per Port WR, SP, and FIFO Port Rate Limiting |
| Reliability | Loop Detection Dying-Gasp Type B Dual Homing Protection |
| Security | Port MAC Address Limitation Port Protection Port Storm Suppression Supports firewall MAC/IP/Port/URL/Domain filtering Supports DDoS protection |
| Management Configuration | Web, TELNET, TR069, OMCI Software Upgrade through TFTP, WEB, TR069, and OLT |
| VoIP Protocols and Standard | |
| Standard | T.38 (G.711 Fax pass-through) |
| Voice Codec | G.711A/G.711U/G.723/G.729 |
| Voice Standard | VAD (Voice Activity Detection) |
| Standards Conformance | |
| Standards | ITU-T G.987.3, G.988, G.989 GB/T 39577-2020 10Gbit/s Passive Optical Networks (XG-PON) IEEE 802.1Q, VLAN |
| Environment Specifications | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
