SKU: ELA-100
| Ethernet interface | 2 passive 10/100/1000 Ethernet ports IEEE 802.3at PoE+/802.3bt PoE++ Passthrough |
| Ground | 1 ground position |
| DC spark-over voltage | 230V, ±20% |
| Nominal impulse discharge current (wave 8 / 20μs) | 20KA |
| Arc Voltage at 1A | ~35V |
| Glow to arc transition current | ~1A |
| Glow voltage | ~200V |
| Dimensions (W x D x H) | 65 x 42 x 20mm |
| Weight | 80g |
| Operating environment | 0~60 degrees C, 5%~90%RH |
| Storage environment | -20~70 degrees C, 5%~90%RH |
| Ordering Information | |
|---|---|
ELA-100 |

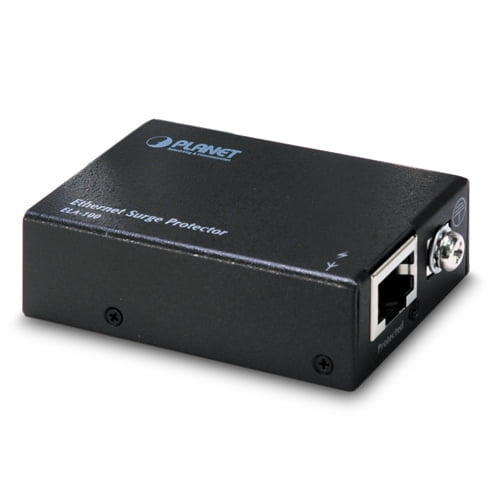

Ethernet Lightning Arrest Box |
