SKU: CAM-AHD425
| Camera | |
|---|---|
| Sensor | Sony 1/2.8″ 2MP CMOS |
| Effective Picture Elements | 1920 (H) x 1080 (V) @ 30fps |
| System | PAL/NTSC |
| Lens Furnished | Fixed lens 3.6mm/F1.2 |
| Minimum Illumination | 0.01 lux @ F1.2, 0 lux with built-in IR LED |
| Video Output | 1 Vp-p composite video, 75 ohms |
| Protection Class | IP65 |
| Power Supply | 12V DC, 1A |
| Dimensions (W x D x H) | 98 x 110 x 77 mm |
| LED | |
| IR LED | 24 pcs Φ5 LED |
| IR Project Distance | up to 25 meters |
| Video & Audio | |
| Hybrid Signal Ouput | AHD/TVI/CVI/CVBS mode |
| S/N Ratio | More than 52dB |
| White Balance | ATW/MWB |
| D-WDR | ON/OFF |
| Day and Night | Auto/Color/B/W/EXT |
| Gamma Characteristic | 0.45 |
| Exposure Mode | Globe/Center/BLC/FLC |
| Auto Electronic Shutter | 1/25s~1/45,000s |
| Digital Noise Reduction | 2DNR |
| Defog | Auto/ON/OFF |
| AGC | Auto/Manual |
| Transmission Distance | Transmission over common coaxial 75-3 cable up to 300-500 meters |
| Environment | |
| Operating Temperature | -30 to 50 degrees C |
| Humidity | ≤85%RH |
| Ordering Information | |
|---|---|
CAM-AHD425 |

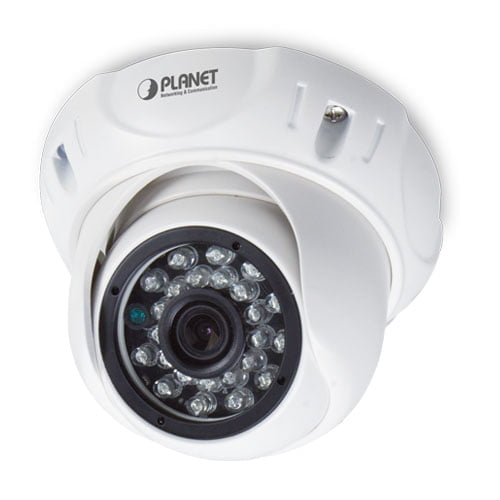

1080p AHD IR Dome Camera |
