SKU: WTL-2400AXE
| Hardware Specifications | |
|---|---|
| Controller | Intel® AX210 |
| Interface | PCIe 2.0 x1（Wi-Fi via PCIe, Bluetooth via USB）
** On certain small-form-factor business desktops with a single chipset-attached (PCH) PCIe slot, PCIe 2.x fallback compatibility may be limited, which can prevent proper detection. We recommend using PCIe 3.0 or newer adapters on such platforms, or a motherboard with a CPU-attached x16 slot. |
| Antenna | 2 × external 5 dBi |
| Dimensions (W x D x H) | 65 × 44.5 × 1.6 mm |
| Weight | 84g |
| Power Supply | PCI Express bus-powered (3.3V) USB 5V (internal header) for Bluetooth function No external power connector required |
| Power Consumption | Max. 0.33 watts / 1.13 BTU/h (Power on without any connection; Wi-Fi only, 3.3 V@100 mA) Max. 0.66 watts / 2.25 BTU/h (Full loading; Wi-Fi only, 3.3 V@200 mA) |
| Wireless | |
| Standard | IEEE 802.11ax/ac/n/b/g/a |
| Bands | 2.4 GHz: 2400–2483.5 MHz 5 GHz: 5150–5850 MHz 6 GHz: 5925–7125 MHz |
| Data Rate | 2.4 GHz up to 574 Mbps 5 GHz up to 2400 Mbps 6 GHz up to 2400 Mbps |
| MIMO | 2×2 spatial streams |
| Bluetooth | |
| Version | Bluetooth 5.2 (via USB interface) |
| Advanced Functions | |
| Operating System Support | Windows® 10 (64-bit) Windows® 11 (64-bit) Linux® (64-bit, kernel 5.10+ with iwlwifi & Intel firmware) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.11a/b/g (2.4/5 GHz) IEEE 802.11n (HT) IEEE 802.11ac (VHT; up to 80/160 MHz) IEEE 802.11ax (HE; 2.4/5/6 GHz, Wi-Fi 6E) Bluetooth® 5.2 (via internal USB interface) PCI Express x1 (for Wi-Fi interface) USB (for Bluetooth function) |
| Regulatory Compliance | FCC Part 15 Class B, CE |
| Environment | |
| Operating Temperature | 0 ~ 55 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Standard Accessories | |

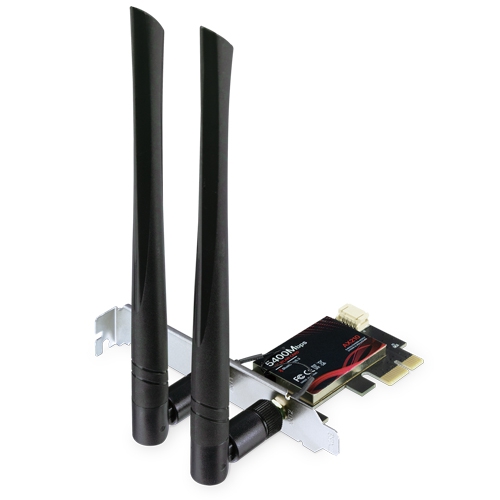

| Package Contents | 1 × WTL-2400AXE Wi-Fi 6E PCIe x1 adapter (full-height bracket pre-installed) 1 × Low-profile bracket 2 × External antennas 1 × Bluetooth® USB header cable (9-pin) 1 × QR code sheet |
